U74HCT138 - 3-TO-8 LINE DECODERS / DEMULTIPLEXERS

U74HCT138 Description

UNISONIC TECHNOLOGIES CO., LTD U74HCT138 3-TO-8 LINE DECODERS / DEMULTIPLEXERS * .
CMOS IC The U74HCT138 decodes a three. bit Address to 1. of. 8 active. low outputs.

U74HCT138 Features

* three Chip Select inputs, two active
* low and one active
* high, to facilitate the demultiplexing, cascading and chip
* selecting functions. The demultiplexing function is accomplished by using the Address inputs to select the desired device output. One of the Chip Selects is used

📥 Download Datasheet

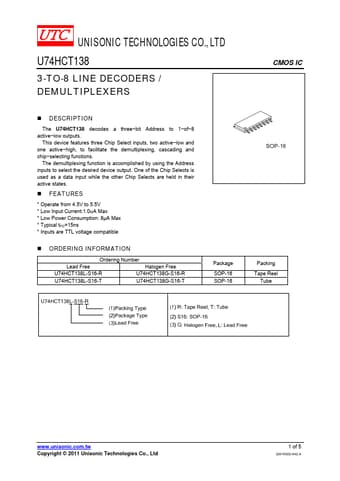

Preview of U74HCT138 PDF
