U74LVC1G02 - SINGLE 2-INPUT NOR GATE

Unisonic Technologies

📥 Download Datasheet

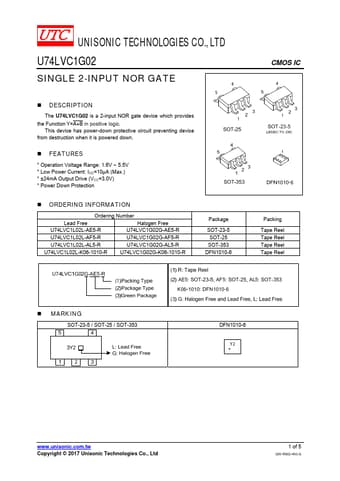

U74LVC1G02 Datasheet Preview — Preview of U74LVC1G02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC1G02
Manufacturer	Unisonic Technologies
File Size	212.86 KB
Description	SINGLE 2-INPUT NOR GATE
Datasheet	U74LVC1G02_UnisonicTechnologies.pdf

U74LVC1G02 Product details

Description

The U74LVC1G02 is a 2-input NOR gate device which provides the Function Y=A+B in positive logic.

Features

S.
Operation Voltage Range: 1.6V ~ 5.5V.
Low Power Current: ICC=10μA (Max. ).
±24mA Output Drive (VCC=3.0V).
Power Down Protection.
