U74LVC1G09 Datasheet - Unisonic Technologies

SINGLE 2-INPUT POSITIVE-AND GATE

U74LVC1G09 Features

* Operate from 1.65V to 5.5V

* Inputs accept voltages to 5.5V

* Ioff supports partial-power-down mode

* ±24mA output drive (VCC=3.3V)

* Low power dissipation

* High noise immunity

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC1G09L-AE5-R U74LVC

U74LVC1G09 General Description

The U74LVC1G09 is a single 2-input AND gate with open-drain output . It performs the Boolean function Y = A * B or Y = A+ B in positive logic . For digital operation this device must have a external pull-up resistor to establish a logic HIGH-level. This device has power-down protective circuit, p.

U74LVC1G09 Datasheet (222.77 KB)

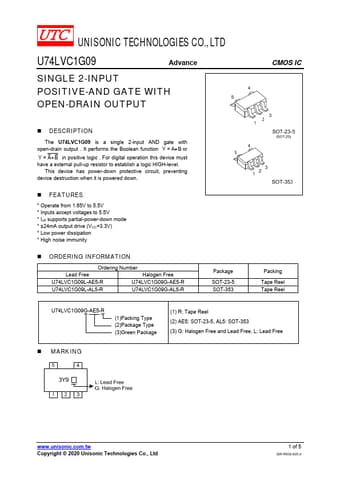

U74LVC1G09 Datasheet Preview — Preview of U74LVC1G09 PDF

Datasheet Details

Part number:

U74LVC1G09

Manufacturer:

Unisonic Technologies

File Size:

222.77 KB

Description:

Single 2-input positive-and gate.
