U74LVC1G07 - BUFFER/DRIVER

Unisonic Technologies

📥 Download Datasheet

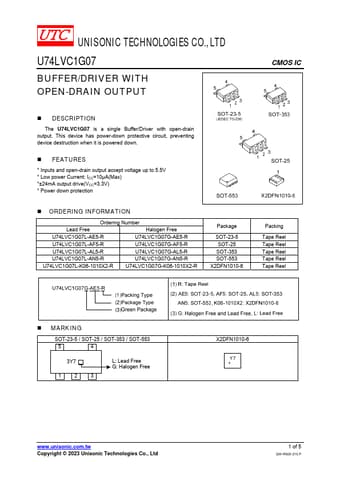

U74LVC1G07 Datasheet Preview — Preview of U74LVC1G07 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC1G07
Manufacturer	Unisonic Technologies
File Size	196.96 KB
Description	BUFFER/DRIVER
Datasheet	U74LVC1G07_UnisonicTechnologies.pdf

U74LVC1G07 Product details

Description

The U74LVC1G07 is a single Buffer/Driver with open-drain output.

Features

S.
Inputs and open-drain output accept voltage up to 5.5V.
Low power Current: ICC=10μA(Max).
±24mA output drive(VCC=3.3V).
Power down protection.
