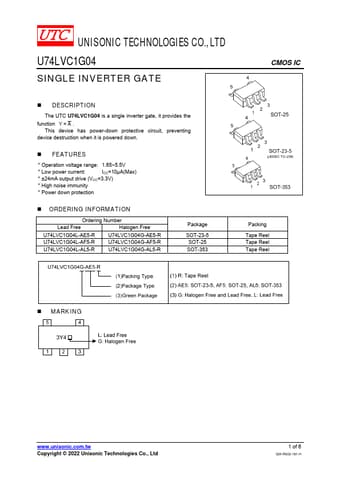

U74LVC1G04 Datasheet, Gate, Unisonic Technologies

U74LVC1G04 Features

• Gate
• Operation voltage range: 1.65~5.5V
• Low power current: ICC=10μA(Max)
• ±24mA output drive (VCC=3.3V)
• High noise immunity
• Power down

PDF File Details

Part number:

U74LVC1G04

Manufacturer:

Unisonic Technologies

File Size:

186.55kb

Download:

📄 Datasheet

Description:

Single inverter gate. The UTC U74LVC1G04 is a single inverter gate, it provides the function Y = A . This device has power-down protective circuit, prevent
