U74LVC1G66 Datasheet, Switch, Unisonic Technologies

U74LVC1G66 Features

  • Switch
  • Operation Voltage Range: 1.65~5.5V
  • Inputs Accept Voltages to 5.5V
  • Max Tpd of 0.8 ns at 3.3V
  • High Degree of Linearity CMOS IC 4 5 3 2 1 4 SOT

PDF File Details

Part number:

U74LVC1G66

Manufacturer:

Unisonic Technologies

File Size:

330.65kb

Download:

📄 Datasheet

Description:

Single bilatral analog switch. The U74LVC1G66 is a high-speed CMOS device. The U74LVC1G66 has two data input/output pins(A and B) and an active HIGH enable input pi

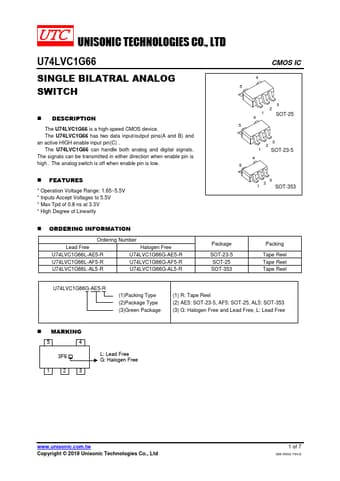

Datasheet Preview: U74LVC1G66 📥 Download PDF (330.65kb)
Page 2 of U74LVC1G66 Page 3 of U74LVC1G66
