U74LVC2G02 Datasheet, Gate, Unisonic Technologies

U74LVC2G02 Features

  • Gate Operation Voltage Range: 1.65~5.5V Low Power Dissipation: ICC=10μA(Max) High Speed: tpd=4.9ns(VCC=3.3V) Specified from -40 to +85°C
  • ORDERING INFORMATION Ordering Number Lead

PDF File Details

Part number:

U74LVC2G02

Manufacturer:

Unisonic Technologies

File Size:

218.88kb

Download:

📄 Datasheet

Description:

Dual 2-input positive-nor gate. CMOS IC The UTC U74LVC2G02 is a dual 2-input positive-NOR gate which provides the function Y=A+B or Y=A+B . This device has power-d

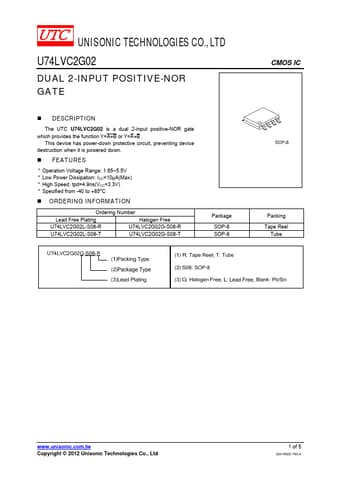

Datasheet Preview: U74LVC2G02 📥 Download PDF (218.88kb)
Page 2 of U74LVC2G02 Page 3 of U74LVC2G02
