U74LVC2G06 INVERTERS

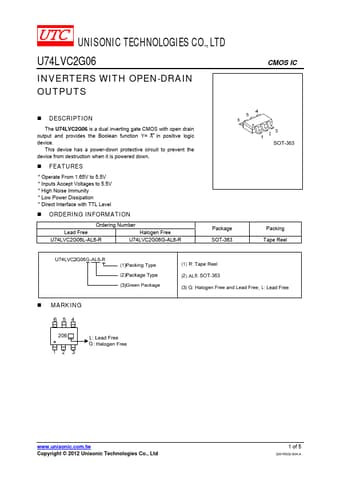

📥 Download Datasheet Datasheet Preview Page 1

Description

UNISONIC TECHNOLOGIES CO., LTD U74LVC2G06 INVERTERS WITH OPEN-DRAIN OUTPUTS * .
The U74LVC2G06 is a dual inverting gate CMOS with open drain output and provides the Boolean function Y= A in positive logic device.

📥 Download Datasheet

Preview of U74LVC2G06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Operate From 1.65V to 5.5V
* Inputs Accept Voltages to 5.5V
* High Noise Immunity
* Low Power Dissipation
* Direct Interface with TTL Level
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC2G06L-AL6-R U74LVC2G06G-AL6-R Package SOT-363 CMOS IC
