U74LVC2G08 - DUAL 2-INPUT AND GATE

Unisonic Technologies

📥 Download Datasheet

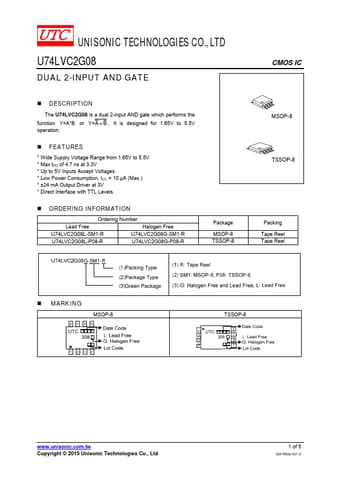

U74LVC2G08 Datasheet Preview — Preview of U74LVC2G08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC2G08
Manufacturer	Unisonic Technologies
File Size	214.79 KB
Description	DUAL 2-INPUT AND GATE
Datasheet	U74LVC2G08_UnisonicTechnologies.pdf

U74LVC2G08 Product details

Description

The U74LVC2G08 is a dual 2-input AND gate which performs the function Y=A B or Y=A  B .

Features

Wide Supply Voltage Range from 1.65V to 5.5V.
Max tPD of 4.7 ns at 3.3V.
Up to 5V Inputs Accept Voltages.
Low Power Consumption, ICC = 10 μA (Max. ).
±24 mA Output Driver at 3V.
Direct Interface with TTL Levels.
