CHA4220-98F Datasheet, Driver, United Monolithic Semiconductors

CHA4220-98F Features

  • Driver
  • Broadband performances: 0.5-20GHz
  • Typical Linear Gain: 17dB
  • OP1dB: 20dBm
  • Psat: 23dBm
  • OIP3: 28dBm
  • Typical Noise Figure: 3.5dB

PDF File Details

Part number:

CHA4220-98F

Manufacturer:

United Monolithic Semiconductors

File Size:

459.48kb

Download:

📄 Datasheet

Description:

0.5-20ghz driver. The CHA4220-98F is a distributed driver amplifier which operates between 0.5 and 20GHz. It is designed for a wide range of applicatio

Datasheet Preview: CHA4220-98F 📥 Download PDF (459.48kb)

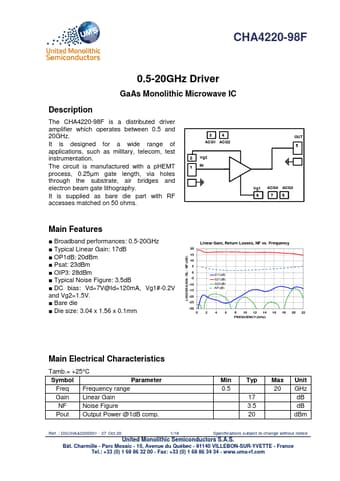

Page 2 of CHA4220-98F Page 3 of CHA4220-98F

CHA4220-98F Application

  • Applications such as military, telecom, test instrumentation. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes throu
