CHA4253a98F Datasheet, Amplifier, United Monolithic Semiconductors

CHA4253a98F Features

  • Amplifier
  • Broadband performances: 17-24GHz
  • 24.5dBm Pout for 1dB gain compression
  • 26dB gain
  • 32dBm OTOI
  • DC bias: Vd= 4.0V, Id= 230mA
  • Chip

PDF File Details

Part number:

CHA4253a98F

Manufacturer:

United Monolithic Semiconductors

File Size:

322.24kb

Download:

📄 Datasheet

Description:

Medium power amplifier. The CHA4253a98F is a four stage VG1 VG2 VG3 VG4 monolithic Medium Power Amplifier. It is designed for a wide range of IN OUT

Datasheet Preview: CHA4253a98F 📥 Download PDF (322.24kb)

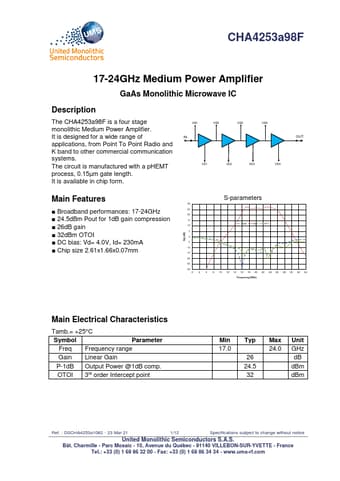

Page 2 of CHA4253a98F Page 3 of CHA4253a98F

CHA4253a98F Application

  • Applications from Point To Point Radio and K band to other commercial communication systems. The circuit is manufactured with a pHEMT VD1 VD2
