CHA4253-FAB Datasheet, Amplifier, United Monolithic Semiconductors

CHA4253-FAB Features

• Amplifier
• Broadband performances: 17- 21GHz
• 23.5dBm Pout for 1dB gain compression
• 26dB Linear Gain
• 33dBm Output IP3
• DC bias: Vd= 4.0V, Id= 230mA

PDF File Details

Part number:

CHA4253-FAB

Manufacturer:

United Monolithic Semiconductors

File Size:

1.12MB

Download:

📄 Datasheet

Description:

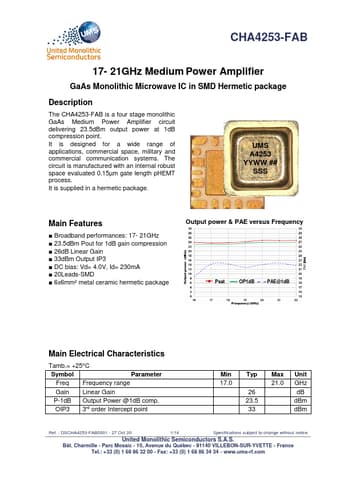

Medium power amplifier. The CHA4253-FAB is a four stage monolithic GaAs Medium Power Amplifier circuit delivering 23.5dBm output power at 1dB compression poi

CHA4253-FAB Application

• Applications commercial space, military and commercial communication systems. The circuit is manufactured with an internal robust space evaluated 0
