CHA4220-QGG Datasheet, Driver, United Monolithic Semiconductors

CHA4220-QGG Features

• Driver
• Broadband performances: 0.5-20GHz Performance
• Typical Linear Gain: 17dB 30 UMS
• P1dB:20dBm
• Psat: 23dBm
• OIP3: 28dBm
• Typical

PDF File Details

Part number:

CHA4220-QGG

Manufacturer:

United Monolithic Semiconductors

File Size:

476.49kb

Download:

📄 Datasheet

Description:

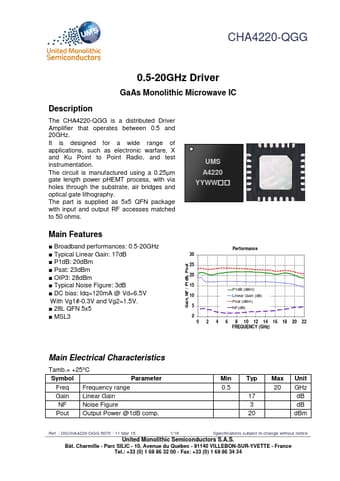

0.5-20ghz driver. The CHA4220-QGG is a distributed Driver Amplifier that operates between 0.5 and 20GHz. It is designed for a wide range of application

CHA4220-QGG Application

• Applications such as electronic warfare, X and Ku Point to Point Radio, and test instrumentation. The circuit is manufactured using a 0.25µm gate l
