CHM1193 Datasheet, Mixer, United Monolithic Semiconductors

CHM1193 Features

  • Mixer
  • 36-38 GHz LO frequency range
  • IF from 1 to 3 GHz
  • Low conversion loss up & down
  • High LO/RF isolation
  • Low LO input power
  • Small c

PDF File Details

Part number:

CHM1193

Manufacturer:

United Monolithic Semiconductors

File Size:

87.13kb

Download:

📄 Datasheet

Description:

K-band mixer. The CHM1193 is a balanced Schottky diode mixer based on a six quarter wave ring structure. It could be use in receiver or transmitter

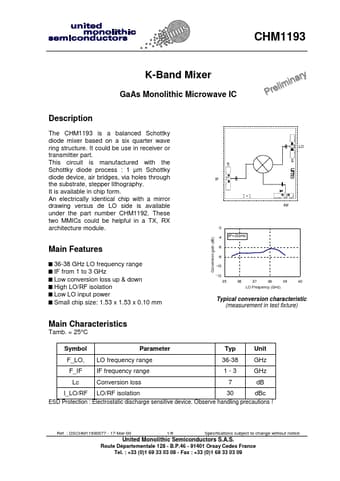

Datasheet Preview: CHM1193 📥 Download PDF (87.13kb)
