CHM1290 20-30GHz SUB-HARMONICALLY PUMPED MIXER

The CHM1290 is a MFC which integrates a self biased LO buffer amplifier and a subharmonically diodes mixer for 2LO suppression It is usable both for up-conversion and downconversion. It is designed for a wide range of applications, typically commercial communication systems for broadband local acces.

CHM1290 Features

* Broadband performance : 20-30GHz 10dB conversion Loss 29dB 2LO to RF isolation -4dBm LO input power -3dBm input power 1 dB compression Low DC power consumption, 33mA@4.0V Chip size : 0.86 X 1.28 X 0.10 mm Main Characteristics Tam

CHM1290_UnitedMonolithicSemiconductors.pdf

Preview of CHM1290 PDF

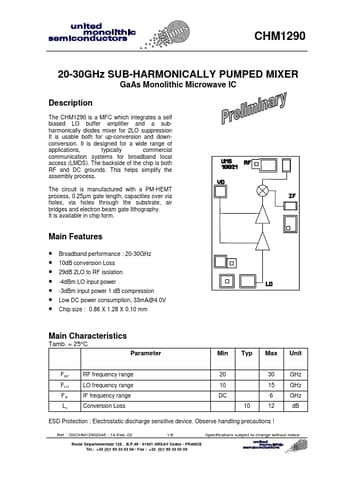

CHM1290 Datasheet Preview Page 2 CHM1290 Datasheet Preview Page 3

Datasheet Details

Part number:

CHM1290

Manufacturer:

United Monolithic Semiconductors

File Size:

116.01 KB

Description:

20-30ghz sub-harmonically pumped mixer.
