CHM1291 Datasheet, Mixer, United Monolithic Semiconductors

CHM1291 Features

  • Mixer
  • Broadband performances : 25-32GHz 11dB conversion Loss 15dBc image rejection +5dBm LO input power +5dBm input power

PDF File Details

Part number:

CHM1291

Manufacturer:

United Monolithic Semiconductors

File Size:

130.05kb

Download:

📄 Datasheet

Description:

25-32ghz single side band mixer. The CHM1291 is a multifunction chip (MFC) which integrates a LO buffer amplifier and a subharmonically balanced diodes mixer for 2LO

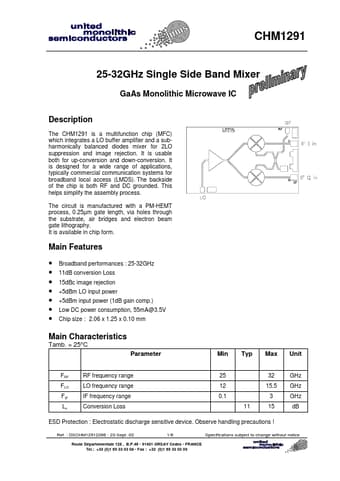

Datasheet Preview: CHM1291 📥 Download PDF (130.05kb)
Page 2 of CHM1291 Page 3 of CHM1291

CHM1291 Application

  • Applications typically commercial communication systems for broadband local access (LMDS). The backside of the chip is both RF and DC grounded. Thi
