CHM1294 Datasheet, Ic, United Monolithic Semiconductors

CHM1294 Features

  • Ic
  • Broadband performances: 35-45GHz
  • 11dB conversion Loss
  • 15dBc image rejection
  • +10dBm LO input power
  • +0dBm input power (1dB gain comp.)

PDF File Details

Part number:

CHM1294

Manufacturer:

United Monolithic Semiconductors

File Size:

114.08kb

Download:

📄 Datasheet

Description:

Gaas monolithic microwave ic. GaAs Monolithic Microwave IC The CHM1294 is a multifunction chip (MFC) which integrates a self biased LO buffer amplifier and a s

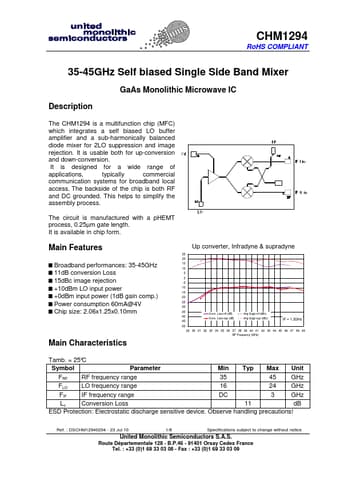

Datasheet Preview: CHM1294 📥 Download PDF (114.08kb)
Page 2 of CHM1294 Page 3 of CHM1294

CHM1294 Application

  • Applications typically commercial communication systems for broadband local access. The backside of the chip is both RF and DC grounded. This
