CHM1290REF Datasheet, Mixer, United Monolithic Semiconductors

CHM1290REF Features

  • Mixer
  • Broadband performance : 20-30GHz 10.5 dB conversion Loss -25dBm 2LO Power @ RF port -4dBm LO input power -3dBm inpu

PDF File Details

Part number:

CHM1290REF

Manufacturer:

United Monolithic Semiconductors

File Size:

199.04kb

Download:

📄 Datasheet

Description:

20-30ghz sub-harmonically pumped mixer. The monolithic microwave IC (MMIC) in the package is a multi-function chip which integrates a self biased LO buffer amplifier and a s

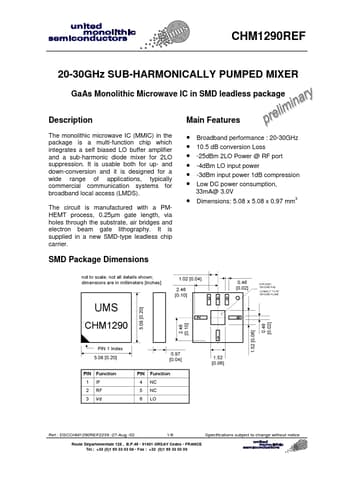

Datasheet Preview: CHM1290REF 📥 Download PDF (199.04kb)
Page 2 of CHM1290REF Page 3 of CHM1290REF

CHM1290REF Application

  • Applications typically commercial communication systems for broadband local access (LMDS). The circuit is manufactured with a PMHEMT process, 0.25ยต
