2N7002KB N-Channel 60V MOSFET

2N7002KB Description

2N7002KB-VB 2N7002KB-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 60 2.8 at VGS = 10 V ID (mA) .

2N7002KB Features

* Halogen-free According to IEC 61249-2-21 Definition
* Low Threshold: 2 V (typ. )
* Low Input Capacitance: 25 pF
* Fast Switching Speed: 25 ns
* Low Input and Output Leakage
* Trench Power MOSFET
* Compliant to RoHS Directive 2002/95/EC BENEFIT

2N7002KB Applications

* Direct Logic-Level Interface: TTL/CMOS
* Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors, etc.
* Battery Operated Systems
* Solid-State Relays ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Vo

📥 Download Datasheet

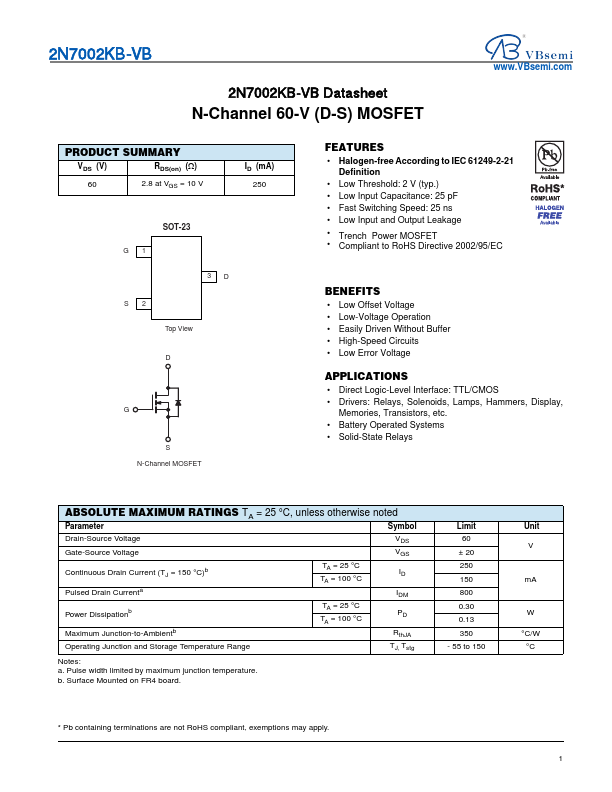

Preview of 2N7002KB PDF

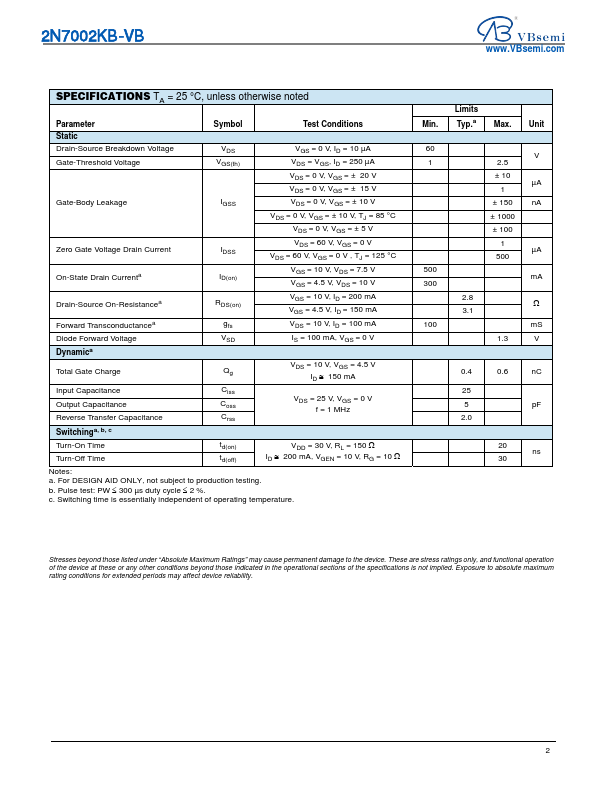

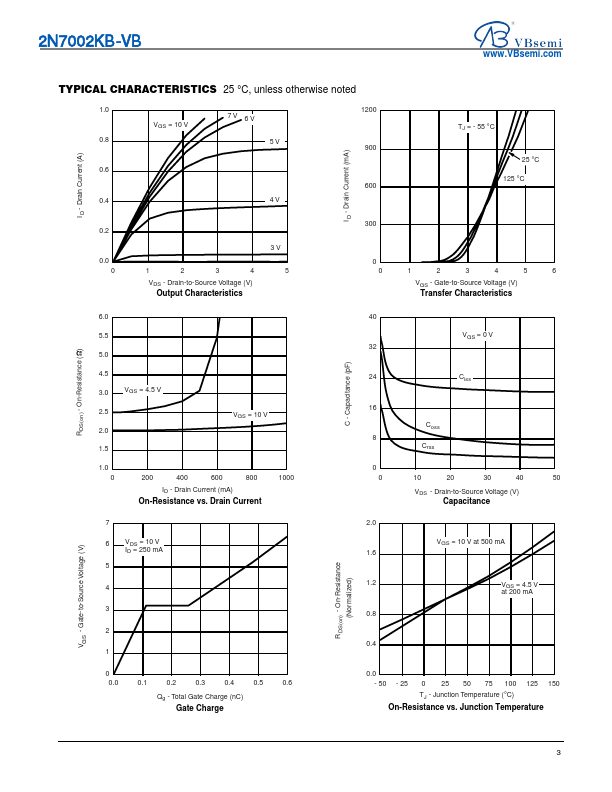

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N7002KB
Manufacturer
VBsemi
File Size
253.56 KB
Datasheet
2N7002KB-VBsemi.pdf
Description
N-Channel 60V MOSFET
