2N7002K, N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary BVDSS 60V RDS(ON) Max 2Ω @ VGS = 10V 3Ω @ VGS = 5V ID Max TA = +25°C 380mA 310mA .
and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it id.

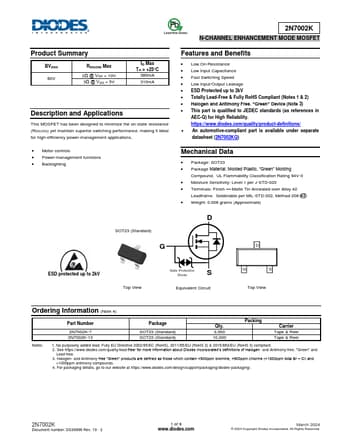

datasheet Preview Page 1 from Datasheet4u.com

2N7002K-DIODES.pdf

2N7002K Datasheet Preview — Preview of 2N7002K PDF

Datasheet Details

Part number:

2N7002K

Manufacturer:

DIODES ↗

File Size:

680.72 KB

Description:

N-CHANNEL ENHANCEMENT MODE MOSFET

Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* ESD Protected up to 2kV
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* This part is qualified to JEDEC stan

Applications

* This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
* Motor controls
* Power-management functions
* Backlighting SOT23 (Standard) G 2N7002K N-CHANNEL
