2SK2559 Datasheet - VBsemi

2SK2559, N-Channel 200V MOSFET

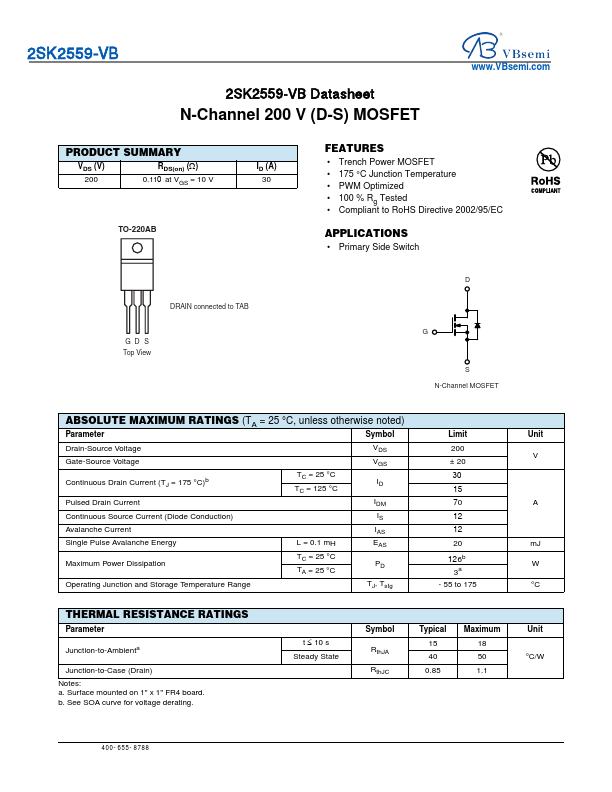

2SK2559-VB 2SK2559-VB Datasheet N-Channel 200 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 200 RDS(on) () 0.110 at VGS = 10 V TO-220AB.

datasheet Preview Page 1 from Datasheet4u.com

2SK2559-VBsemi.pdf

2SK2559 Datasheet Preview — Preview of 2SK2559 PDF

Datasheet Details

Part number:

2SK2559

Manufacturer:

VBsemi

File Size:

254.62 KB

Description:

N-Channel 200V MOSFET

Features

* Trench Power MOSFET
* 175 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested

Applications

* Primary Side Switch DRAIN connected to TAB GD S Top View D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C ID Pul
