AFN2308AS23RG Datasheet - VBsemi

datasheet Preview Page 1 from Datasheet4u.com

AFN2308AS23RG N-Channel 60V MOSFET

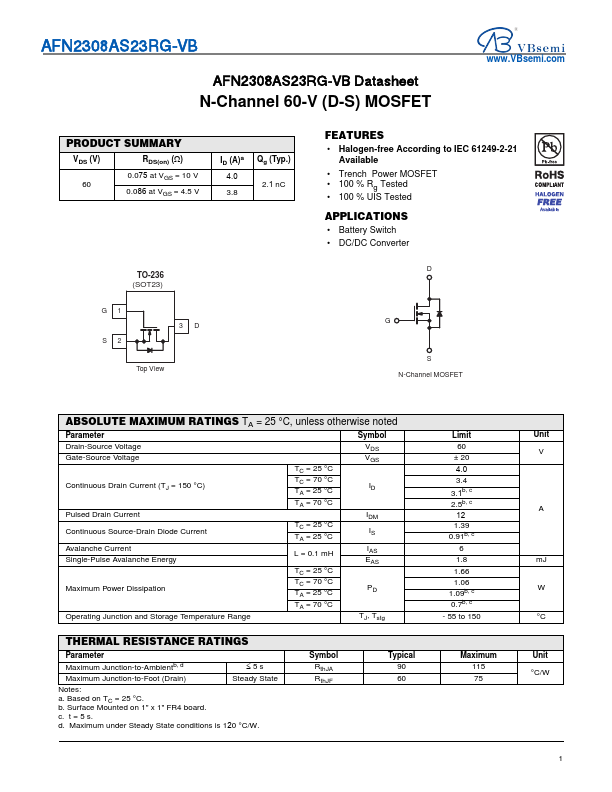

AFN2308AS23RG-VB AFN2308AS23RG-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.075 at VGS = 10 V 60.

AFN2308AS23RG-VBsemi.pdf

AFN2308AS23RG Datasheet Preview — Preview of AFN2308AS23RG PDF

Datasheet Details

Part number:

AFN2308AS23RG

Manufacturer:

VBsemi

File Size:

256.28 KB

Description:

N-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET
* 100 % Rg Tested

Applications

* Battery Switch
* DC/DC Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C Pul
