BSH201 - P-Channel 60V MOSFET

VBsemi

📥 Download Datasheet

BSH201 Datasheet Preview — Preview of BSH201 PDF

datasheet Preview Page 2

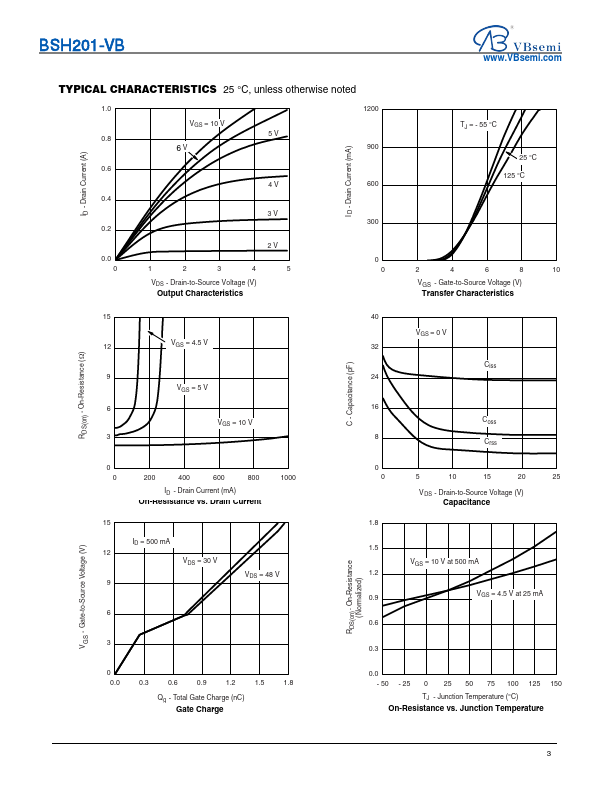

datasheet Preview Page 3

Datasheet Details

Part number	BSH201
Manufacturer	VBsemi ↗
File Size	215.34 KB
Description	P-Channel 60V MOSFET
Datasheet	BSH201-VBsemi.pdf

BSH201 Product details

Features

Halogen-free According to IEC 61249-2-21 Definition.
TrenchFET® Power MOSFET.
High-Side Switching.
Low On-Resistance: 3 .
Low Threshold: - 2 V (typ. ).
Fast Swtiching Speed: 20 ns (typ. ).
Low Input Capacitance: 20 pF (typ. ).
Compliant to RoHS Directive 2002/95/EC TO-236 (SOT-23) G1 S2 3D S G D P-Channel MOSFET.
