BSH205 P-Channel 20V MOSFET

VBsemi

Description

BSH205-VB BSH205-VB Datasheet P-Channel 20-V (D-S) MOSFET www.VBsemi.com MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () ID (A)a 0.060 at VGS = - 10.

📥 Download Datasheet

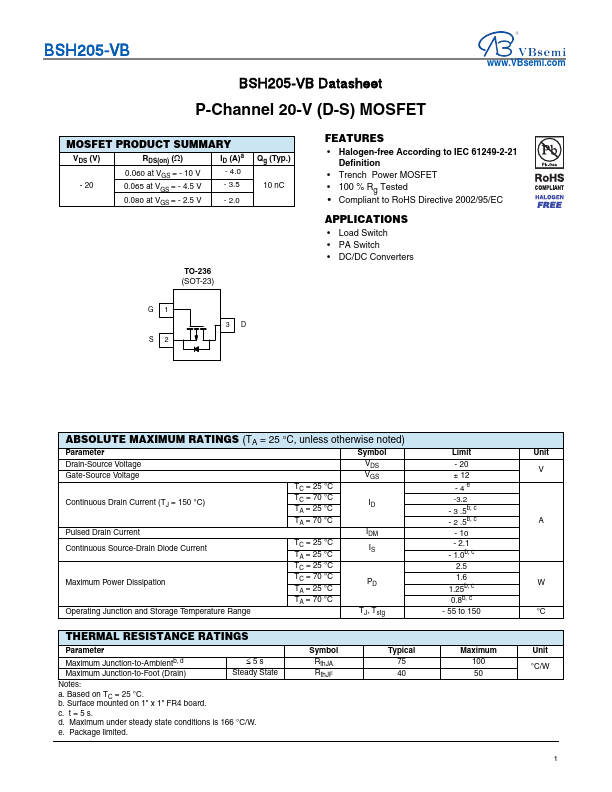

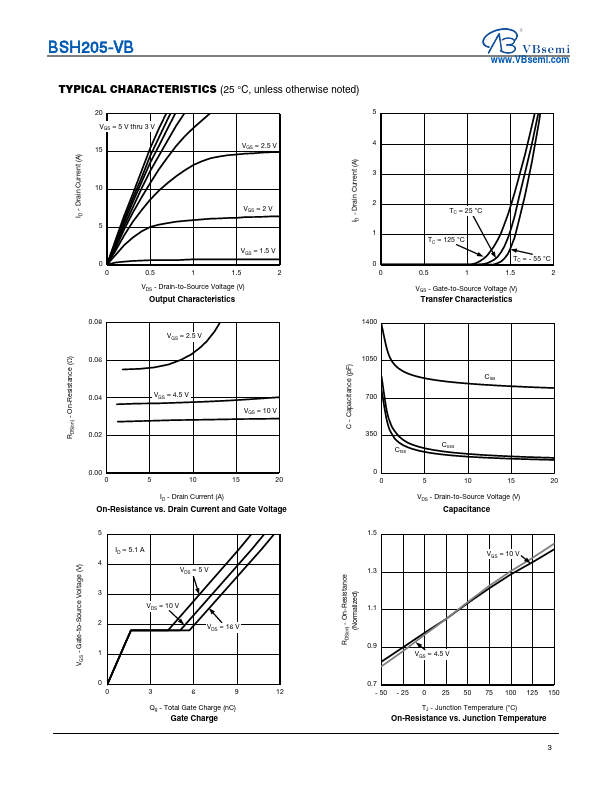

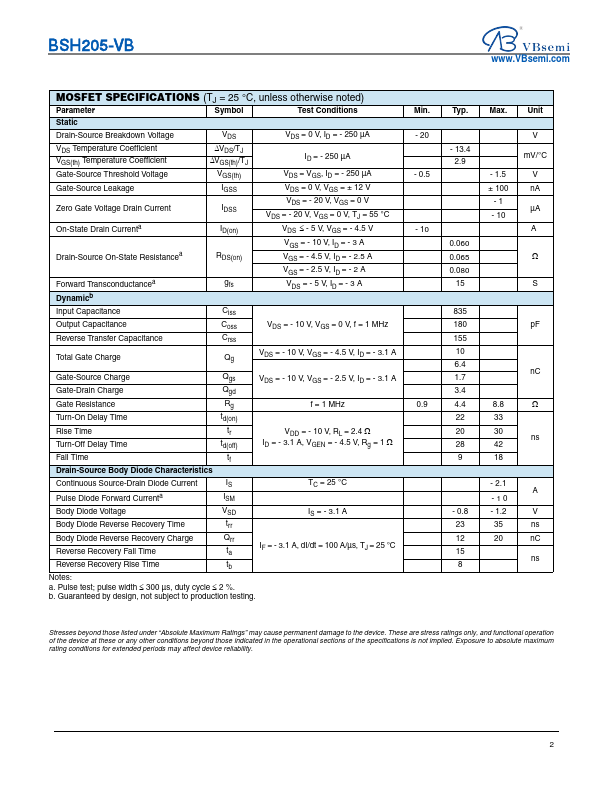

BSH205 Datasheet Preview — Preview of BSH205 PDF

Datasheet Specifications

Part number: BSH205
Manufacturer: VBsemi
File Size: 241.57 KB
Datasheet: BSH205-VBsemi.pdf
Description: P-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch
* PA Switch
* DC/DC Converters G1 S2 3D ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C ID TA =
