* TrenchFET® power MOSFET
* 100 % Rg tested APPLICATIONS
* Smart phones, tablet PC’s - DC/DC converters - Boost converters - Load switch, OVP switch G1 3D G S2 Top View S www.VBsemi.com ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Dr
DMG1012T Datasheet (349.34 KB)
DMG1012T
VBsemi
349.34 KB
N-channel mosfet.
DMG1012T

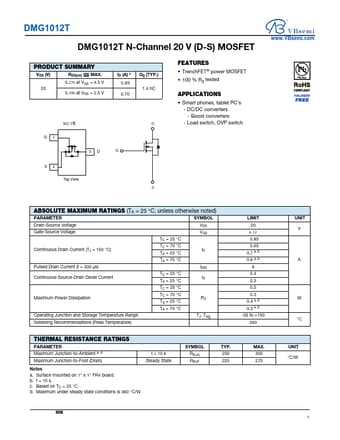

DMG1012T N-Channel 20 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω) MAX.
0.270 at VGS = 4.5 V
20 0.390 at VGS = 2.5 V
ID (A) c 0.8.
