ELM14411AA - P-Channel 30V MOSFET

ELM14411AA Description

ELM14411AA-VB ELM14411AA-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.018 at VGS = - 10 V.

ELM14411AA Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET

ELM14411AA Applications

* Load Switch
* Battery Switch S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Drain Curr

📥 Download Datasheet

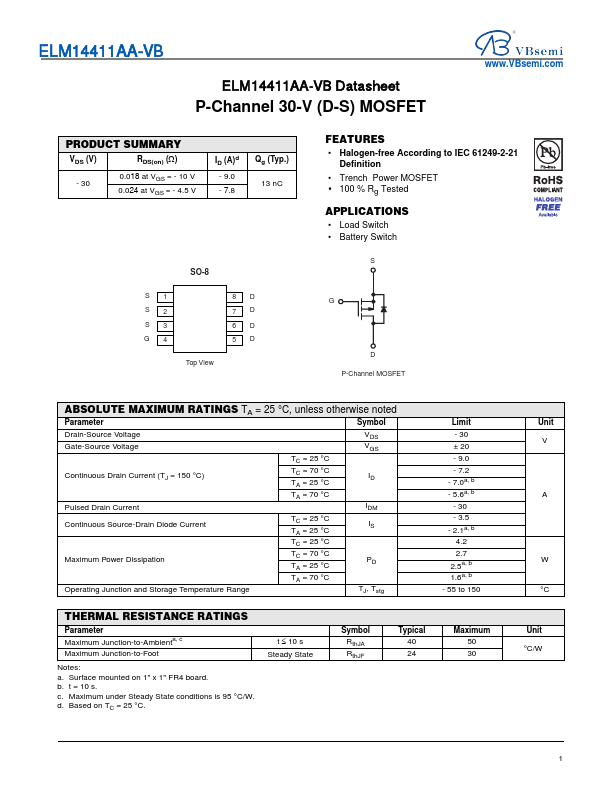

Preview of ELM14411AA PDF

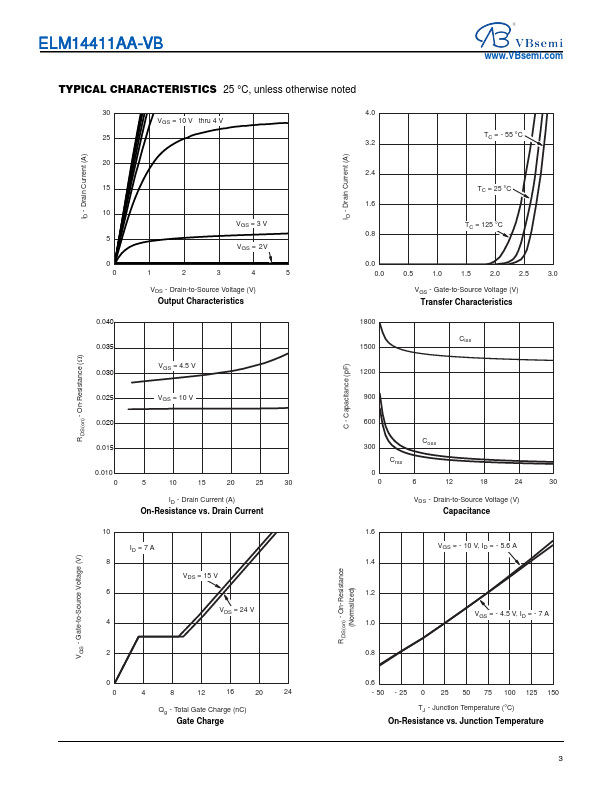

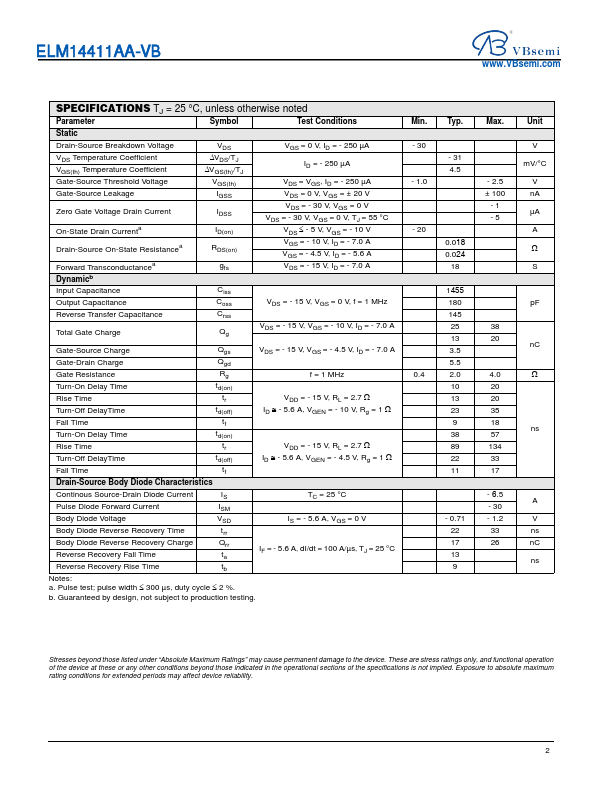

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ELM14411AA
Manufacturer
VBsemi
File Size
192.41 KB
Datasheet
ELM14411AA-VBsemi.pdf
Description
P-Channel 30V MOSFET
