ELM14429AA - P-Channel 30V MOSFET

ELM14429AA Description

ELM14429AA-VB ELM14429AA-VB Datasheet P-Channel 30 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) at VGS = 10 V RDS(on) (Ω) at VG.

ELM14429AA Features

* Trench Gen IV p-channel power MOSFET
* Enables higher power density

ELM14429AA Applications

* Battery management in mobile devices
* Adapter and charger switch
* Battery switch
* Load switch 4 3G 2S 1S S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source voltage Gate-source voltage

📥 Download Datasheet

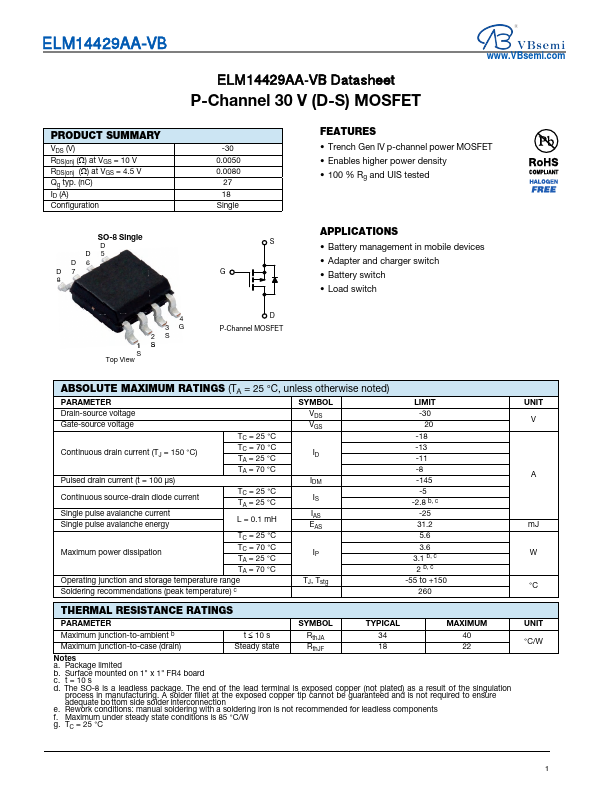

Preview of ELM14429AA PDF

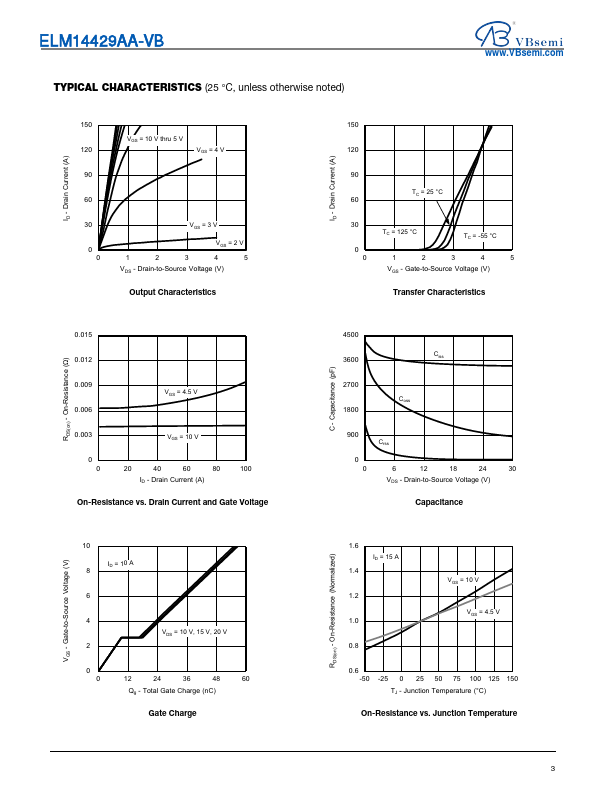

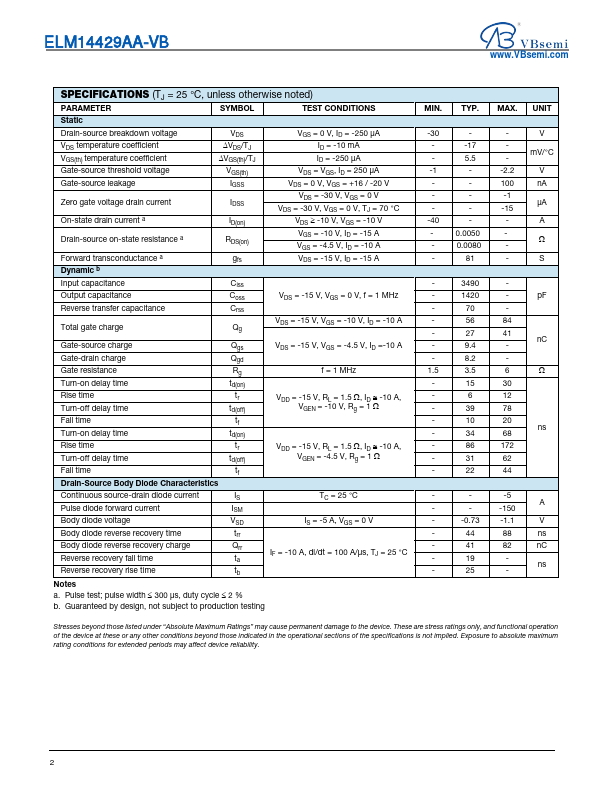

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ELM14429AA
Manufacturer
VBsemi
File Size
258.96 KB
Datasheet
ELM14429AA-VBsemi.pdf
Description
P-Channel 30V MOSFET
