IRF9530NPBF, P-Channel MOSFET

IRF9530NPBF www.VBsemi.com IRF9530NPBF Datasheet P-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V RDS(on) VGS = 4.5 V ID Config.

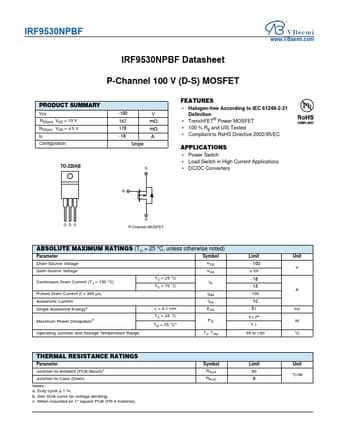

datasheet Preview Page 1 from Datasheet4u.com

IRF9530NPBF-VBsemi.pdf

IRF9530NPBF Datasheet Preview — Preview of IRF9530NPBF PDF

Datasheet Details

Part number:

IRF9530NPBF

Manufacturer:

VBsemi

File Size:

493.08 KB

Description:

P-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* Power Switch
* Load Switch in High Current Applications
* DC/DC Converters G GD S D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150
