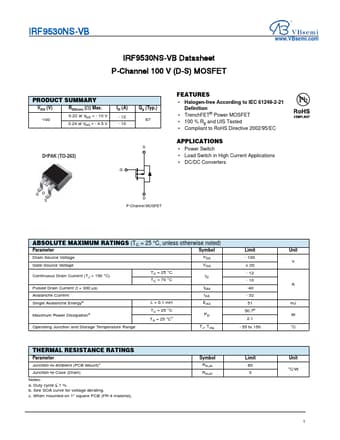

IRF9530NS Datasheet, MOSFET, VBsemi

IRF9530NS Features

• Mosfet
• Halogen-free According to IEC 61249-2-21 Definition
• TrenchFET® Power MOSFET
• 100 % Rg and UIS Tested
• Compliant to RoHS Directive 2002/95/EC APPLIC

PDF File Details

Part number:

IRF9530NS

Manufacturer:

VBsemi

File Size:

173.03kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

IRF9530NS Application

• Applications
• Power Switch
• Load Switch in High Current Applications
• DC/DC Converters GD S D P-Channel MOSFET ABSOLUT
