K25E06K3 N-Channel 60V MOSFET

VBsemi

Description

K25E06K3-VB K25E06K3-VB Datasheet N-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 60 0.011 at VGS = 10 V 0.013 at VGS = 4.5 V .

📥 Download Datasheet

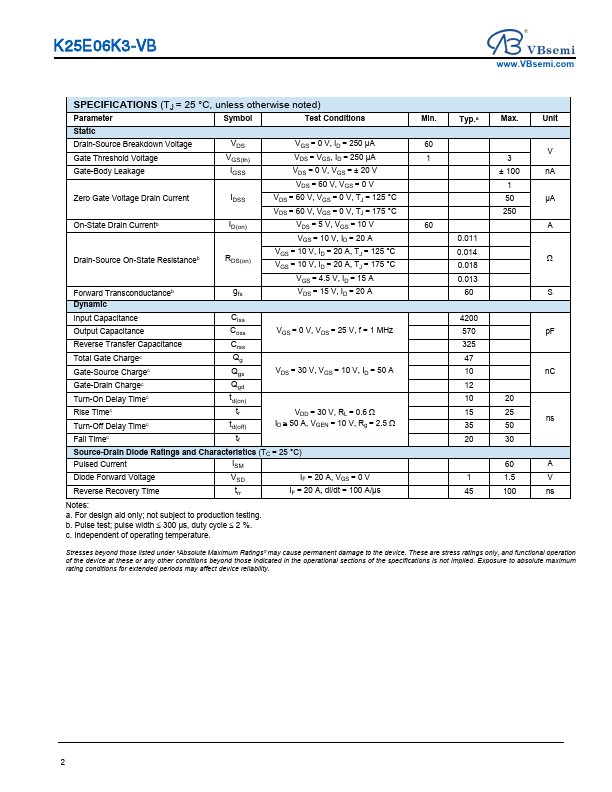

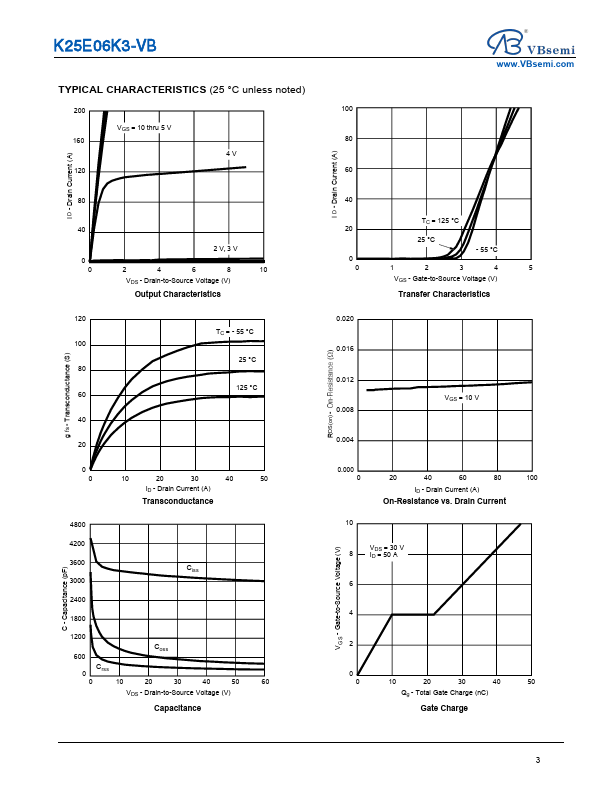

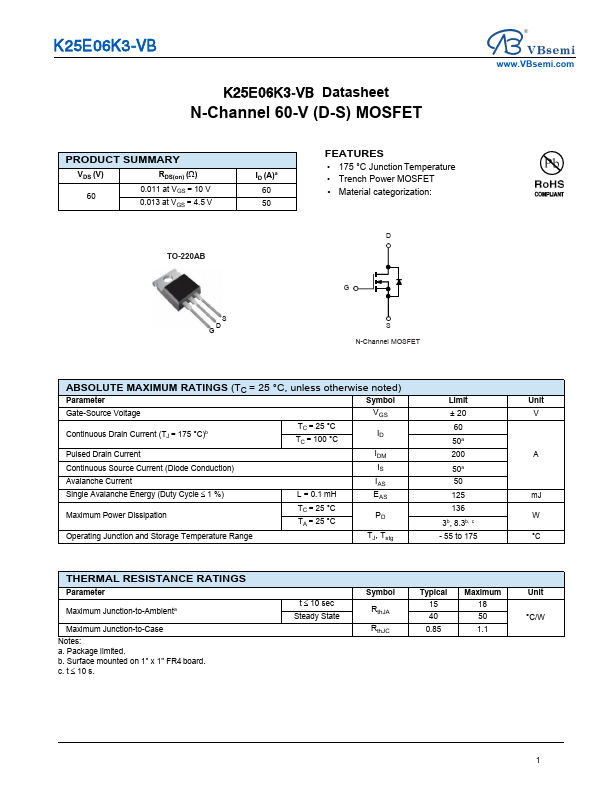

K25E06K3 Datasheet Preview — Preview of K25E06K3 PDF

Datasheet Specifications

Part number: K25E06K3
Manufacturer: VBsemi
File Size: 226.30 KB
Datasheet: K25E06K3-VBsemi.pdf
Description: N-Channel 60V MOSFET

Features

* 175 °C Junction Temperature
* Trench Power MOSFET
* Material categorization: D G S N-Channel MOSFET www. VBsemi. com ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous Drain Current (T
