LSD11N60E - N-Channel 600V Power MOSFET

LSD11N60E Description

LSD11N60E-VB www.VBsemi.com LSD11N60E-VB Datasheet N-Channel 600V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at .

LSD11N60E Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

LSD11N60E Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM

📥 Download Datasheet

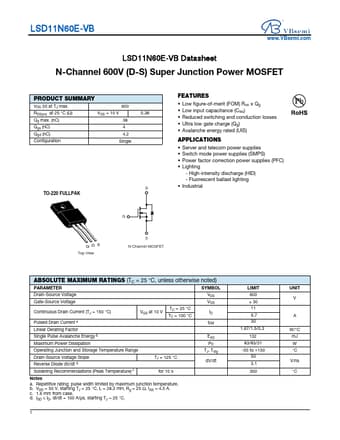

Preview of LSD11N60E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LSD11N60E
Manufacturer
VBsemi
File Size
277.53 KB
Datasheet
LSD11N60E-VBsemi.pdf
Description
N-Channel 600V Power MOSFET
