LSD11N65E - N-Channel 650V Power MOSFET

Product Overview

VBsemi

📥 Download Datasheet

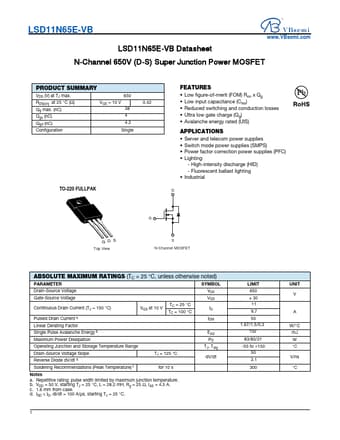

LSD11N65E N-Channel 650V Power MOSFET by VBsemi - Datasheet Preview — Datasheet preview – LSD11N65E

Datasheet Details

Part number	LSD11N65E
Manufacturer	VBsemi
File Size	280.47 KB
Description	N-Channel 650V Power MOSFET
Datasheet	LSD11N65E Datasheet
Additional preview pages of the LSD11N65E datasheet.

Product details

Features

Low figure-of-merit (FOM) Ron x Qg.
Low input capacitance (Ciss).
Reduced switching and conduction losses.
Ultra low gate charge (Qg).
Avalanche energy rated (UIS).
