P2N04L03 N-Channel 40V MOSFET

VBsemi

Description

P2N04L03-VB P2N04L03-VB Datasheet N-Channel 40 V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) at VGS = 10 V ID (A) Configu.

📥 Download Datasheet

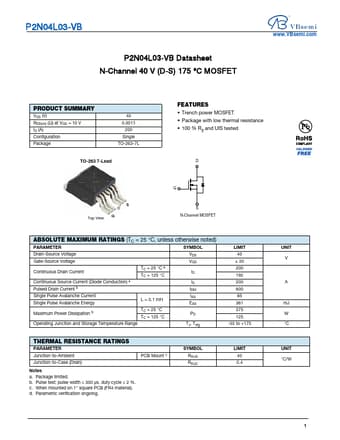

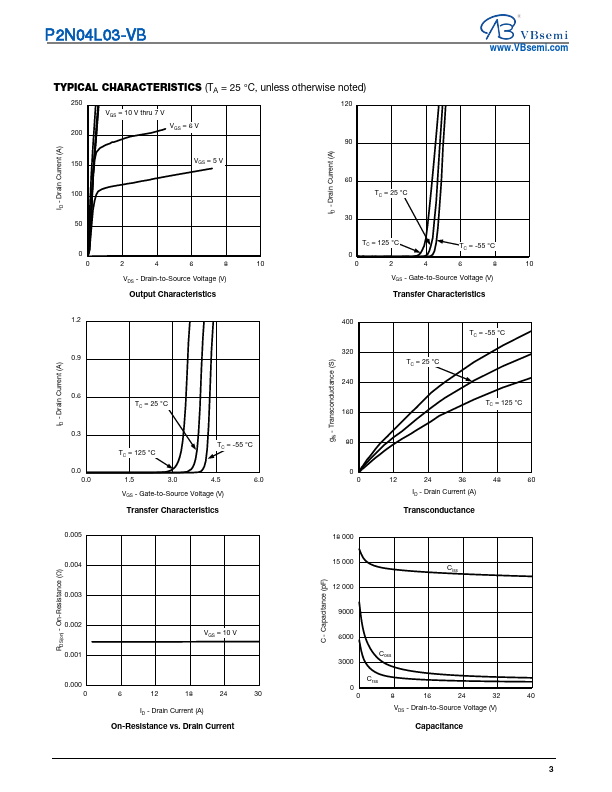

P2N04L03 Datasheet Preview — Preview of P2N04L03 PDF

Datasheet Specifications

Part number: P2N04L03
Manufacturer: VBsemi
File Size: 240.51 KB
Datasheet: P2N04L03-VBsemi.pdf
Description: N-Channel 40V MOSFET

Features

* Trench power MOSFET
* Package with low thermal resistance
* 100 % Rg and UIS tested D Top View S D G G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Dr
