P4NB80 - Power MOSFET

P4NB80 Description

P4NB80-VB P4NB80-VB Datasheet Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 850 .

P4NB80 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC TO-220AB D S D G G S N-Cha

📥 Download Datasheet

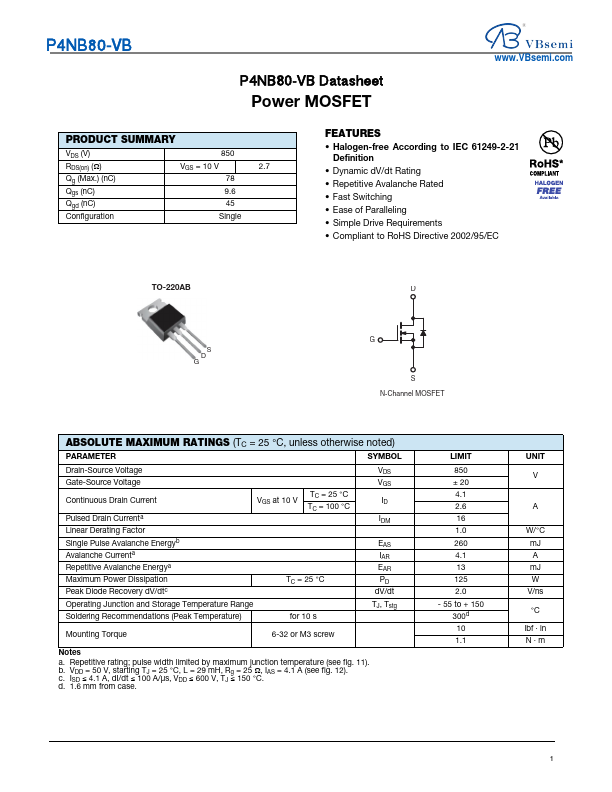

Preview of P4NB80 PDF

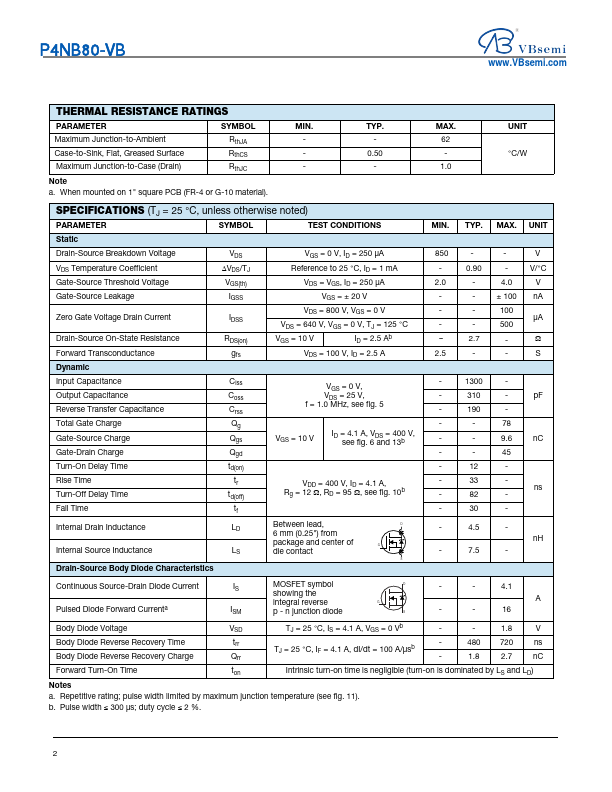

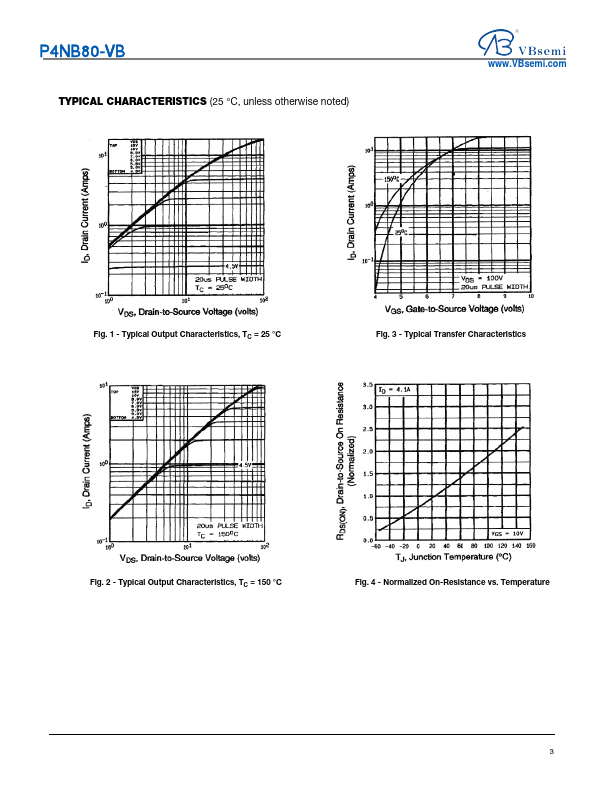

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P4NB80
Manufacturer
VBsemi
File Size
511.73 KB
Datasheet
P4NB80-VBsemi.pdf
Description
Power MOSFET
