SSI2007 N- and P-Channel 20V MOSFET

SSI2007 Description

SSI2007-VB SSI2007-VB Datasheet N-and P-Channel 20V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY N-Channel VDS (V) 20 RDS(on) (Ω) 0.270 at VGS = .

SSI2007 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC SC-75-6 D1 S2 G2 G1 Top View S1 N-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise no

📥 Download Datasheet

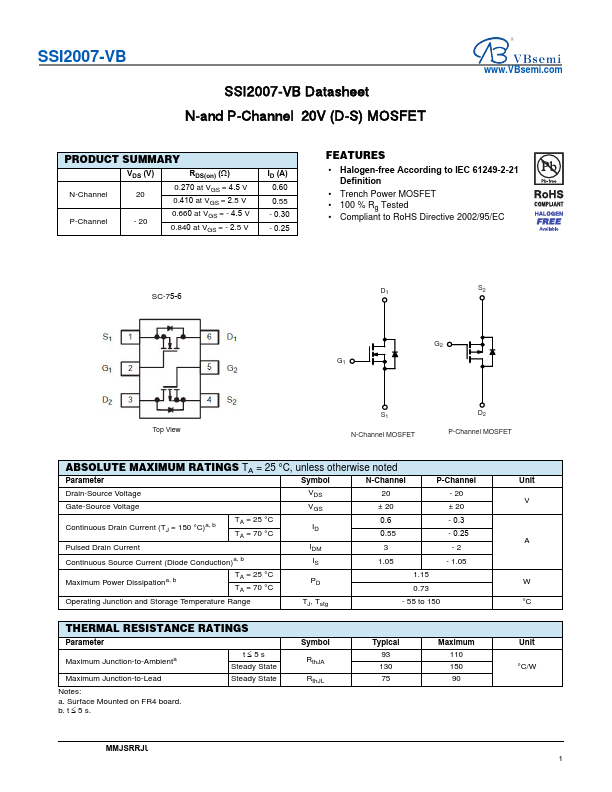

Preview of SSI2007 PDF

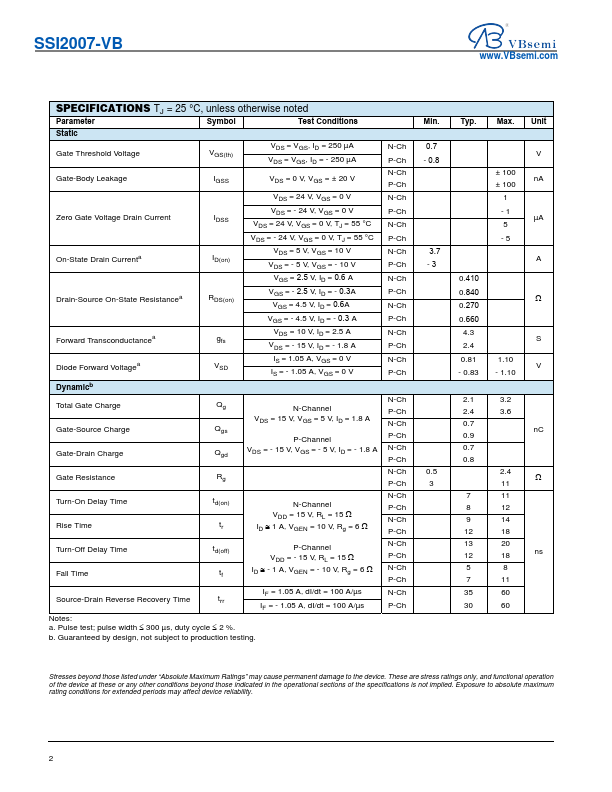

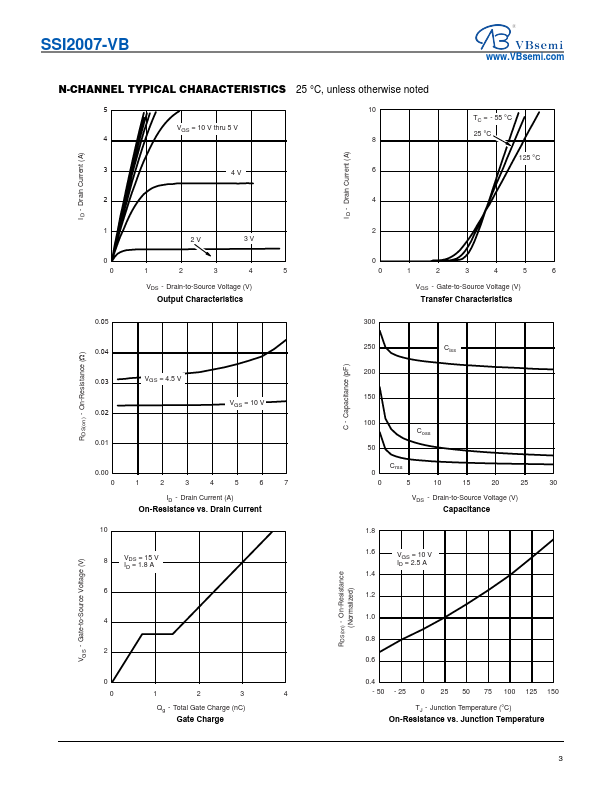

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSI2007
Manufacturer
VBsemi
File Size
331.55 KB
Datasheet
SSI2007-VBsemi.pdf
Description
N- and P-Channel 20V MOSFET
