STS7NF30L - N-Channel MOSFET

STS7NF30L Description

STS7NF30L-VB STS7NF30L-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.008 at VGS= 10 V 0.011.

STS7NF30L Features

* Halogen-free
* TrenchFET® Power MOSFET
* Optimized for High-Side Synchronous Rectifier Operation
* 100 % Rg Tested

STS7NF30L Applications

* Notebook CPU Core - High-Side Switch D G Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 VGS ± 20 V TC = 25 °C 13 Continuous Drain Current (TJ = 150 °C) TC =

📥 Download Datasheet

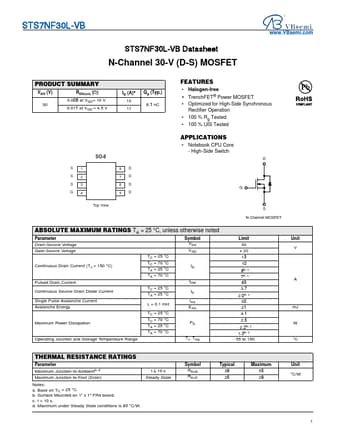

Preview of STS7NF30L PDF
