TM2302FN - N-Channel 20V MOSFET

TM2302FN Description

TM2302FN-VB TM2302FN-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.028 at VGS = 4.5 V 20 0.042.

TM2302FN Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

TM2302FN Applications

* DC/DC Converters
* Load Switch for Portable Applications ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID TA = 70 °C

📥 Download Datasheet

Preview of TM2302FN PDF

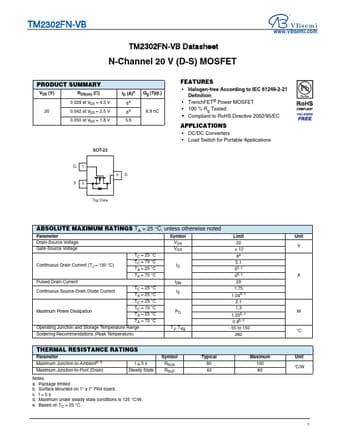

datasheet Preview Page 2 datasheet Preview Page 3
