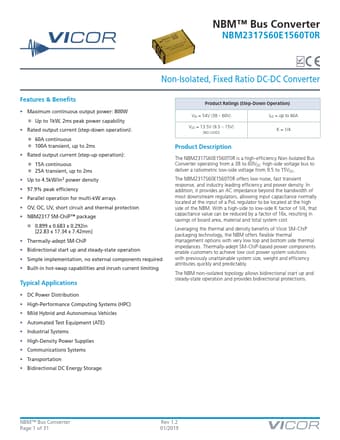

NBM2317S60E1560T0R Datasheet Preview — Preview of NBM2317S60E1560T0R PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NBM2317S60E1560T0R
Manufacturer: VICOR
File Size: 2.70 MB
Datasheet: NBM2317S60E1560T0R-VICOR.pdf
Description: Fixed Ratio DC-DC Converter

NBM2317S60E1560T0R Product details

Features

& Benefits.
Maximum continuous output power: 800W.
Up to 1kW, 2ms peak power capability.
Rated output current (step-down operation):.
60A continuous.
100A transient, up to 2ms.
Rated output current (step-up operation):.
15A continuous.
25A transient, up to 2ms.
Up to 4.5kW/in3 power density.
97.9% peak efficiency.
Parallel operation for multi-kW arrays.
