NBM5100A Datasheet - nexperia

Coin cell battery life booster

NBM5100A Features

* Programmable constant battery load current: 2 mA to 16 mA

* Protection against battery voltage dips (Brown-out)

* Pulse output current: > 150 mA

* Low ripple regulated programmable output voltage, VDH: 1.8 V to 3.6 V

* Ultra-low standby current: < 50 nA

NBM5100A General Description

The NBM5100A/B is a battery energy management device designed to maximize usable capacity from non-rechargeable, primary batteries when used in lowvoltage, low-power applications requiring burst current loads. The devices overcome voltage drop and battery life limitations associated with extracting.

NBM5100A Datasheet (1.45 MB)

NBM5100A Datasheet Preview — Preview of NBM5100A PDF

Datasheet Details

Part number:

NBM5100A

Manufacturer:

nexperia ↗

File Size:

1.45 MB

Description:

Coin cell battery life booster.

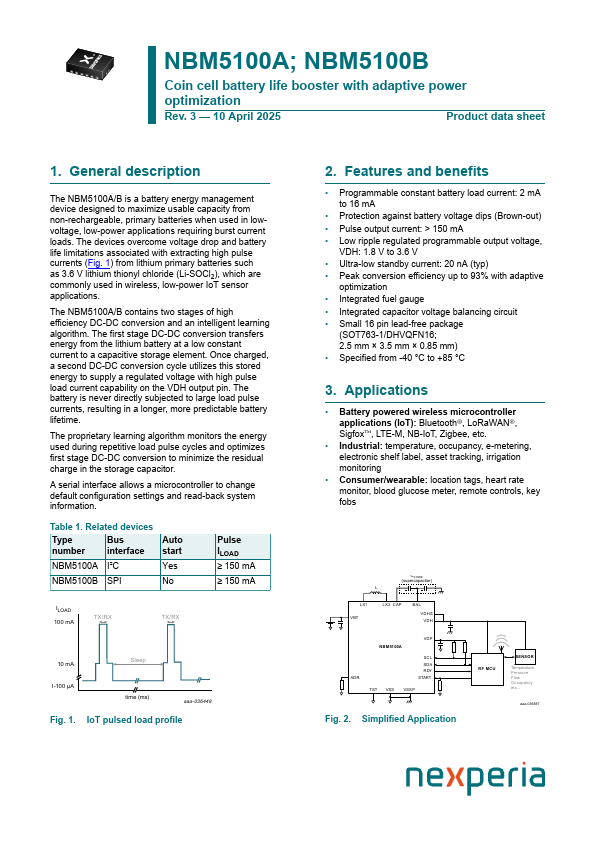

NBM5100A; NBM5100B Coin cell battery life booster with adaptive power optimization Rev. 1 29 June 2023 Product data sheet 1. General de.
