NBM7100A - Coin cell battery life booster

nexperia

📥 Download Datasheet

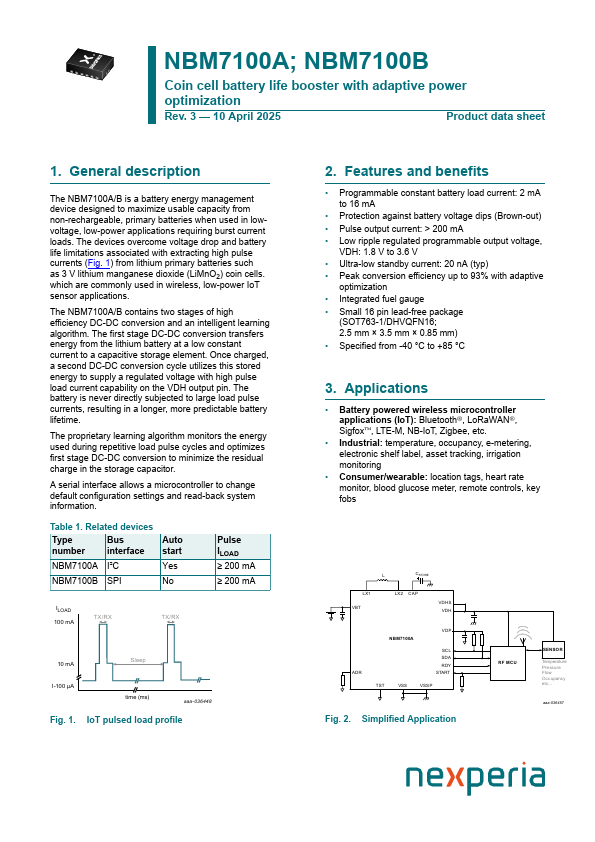

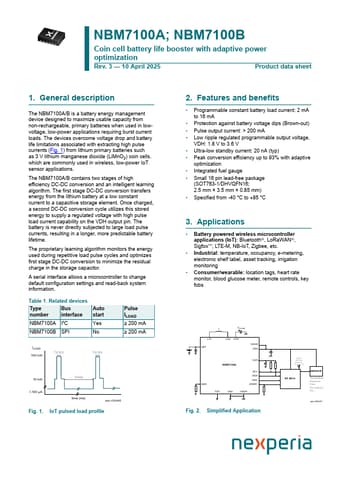

NBM7100A Datasheet Preview — Preview of NBM7100A PDF

Datasheet Details

Part number: NBM7100A
Manufacturer: nexperia ↗
File Size: 1.42 MB
Datasheet: NBM7100A-nexperia.pdf
Description: Coin cell battery life booster

NBM7100A Product details

Description

The NBM7100A/B is a battery energy management device designed to maximize usable capacity from non-rechargeable, primary batteries when used in lowvoltage, low-power applications requiring burst current loads..

Features

Programmable constant battery load current: 2 mA to 16 mA.
Protection against battery voltage dips (Brown-out).
Pulse output current: > 200 mA.
Low ripple regulated programmable output voltage, VDH: 1.8 V to 3.6 V.
Ultra-low standby current: 20 nA (typ).
Peak conversion efficiency up to 93% with adaptive optimization.
Integrated fuel gauge.
Small 16 pin lead-free package (SOT763-1/DHVQFN16; 2.5 mm × 3.5 mm × 0.85 mm).
