NBM7100B Datasheet - nexperia

Coin cell battery life booster

NBM7100B Features

* Programmable constant battery load current: 2 mA to 16 mA

* Protection against battery voltage dips (Brown-out)

* Pulse output current: > 200 mA

* Low ripple regulated programmable output voltage, VDH: 1.8 V to 3.6 V

* Ultra-low standby current: 20 nA (typ)

NBM7100B General Description

The NBM7100A/B is a battery energy management device designed to maximize usable capacity from non-rechargeable, primary batteries when used in lowvoltage, low-power applications requiring burst current loads. The devices overcome voltage drop and battery life limitations associated with extracting.

NBM7100B Datasheet (1.42 MB)

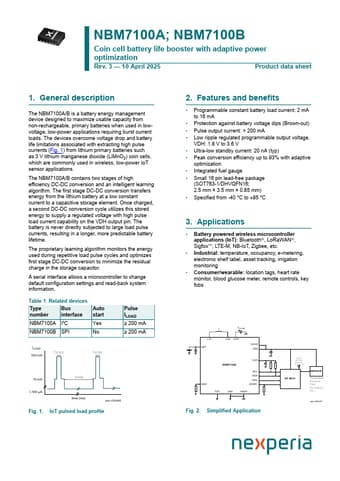

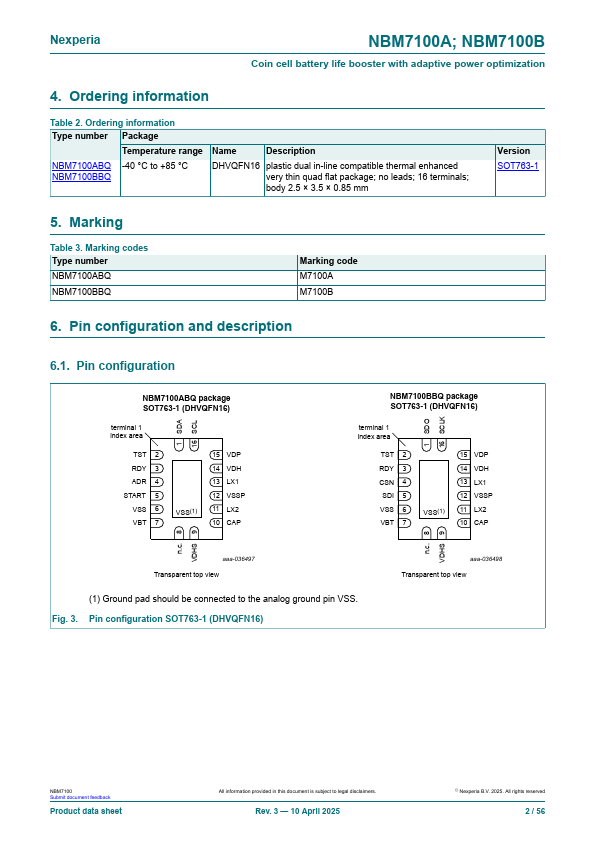

NBM7100B Datasheet Preview — Preview of NBM7100B PDF

Datasheet Details

Part number:

NBM7100B

Manufacturer:

nexperia ↗

File Size:

1.42 MB

Description:

Coin cell battery life booster.
NBM7100A; NBM7100B Coin cell battery life booster with adaptive power optimization Rev. 3 10 April 2025 Product data sheet 1. General d.
