NBM5100B

Coin cell battery life booster

NBM5100B Features

* Programmable constant battery load current: 2 mA to 16 mA

* Protection against battery voltage dips (Brown-out)

* Pulse output current: > 150 mA

* Low ripple regulated programmable output voltage, VDH: 1.8 V to 3.6 V

* Ultra-low standby current: < 50 nA

NBM5100B General Description

The NBM5100A/B is a battery energy management device designed to maximize usable capacity from non-rechargeable, primary batteries when used in lowvoltage, low-power applications requiring burst current loads. The devices overcome voltage drop and battery life limitations associated with extracting.

NBM5100B Datasheet (1.45 MB)

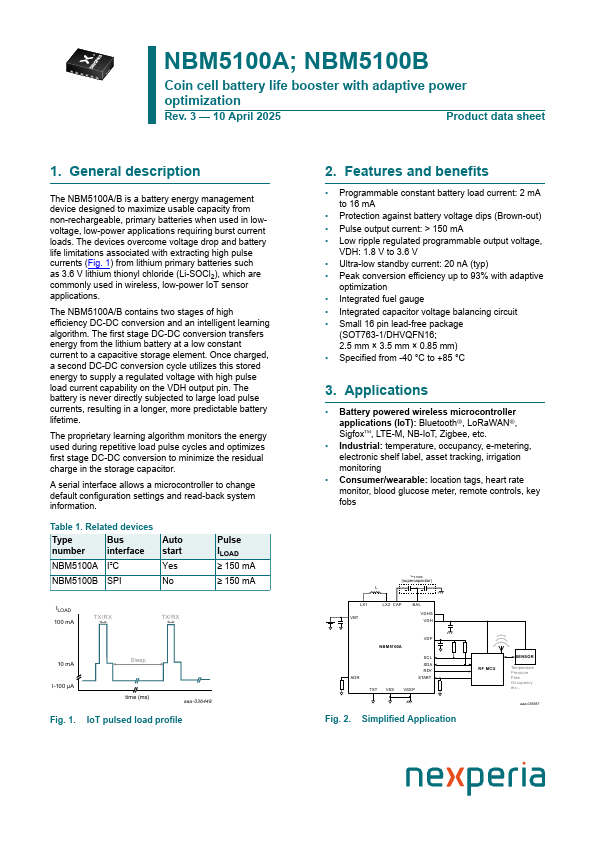

Preview of NBM5100B PDF

Datasheet Details

Part number:

NBM5100B

Manufacturer:

nexperia ↗

File Size:

1.45 MB

Description:

Coin cell battery life booster.
NBM5100A; NBM5100B Coin cell battery life booster with adaptive power optimization Rev. 1

* 29 June 2023 Product data sheet 1. General de.

📁 Related Datasheet

NBM5100A - Coin cell battery life booster (nexperia)
NBM5100A; NBM5100B Coin cell battery life booster with adaptive power optimization Rev. 1 — 29 June 2023 Product data sheet 1. General descriptio.

NBM5100A-Q100 - Coin cell battery life booster (nexperia)
NBM5100A-Q100; NBM5100B-Q100 Coin cell battery life booster with adaptive power optimization Rev. 1 — 13 September 2024 Product data sheet 1. Ge.

NBM5100B-Q100 - Coin cell battery life booster (nexperia)
NBM5100A-Q100; NBM5100B-Q100 Coin cell battery life booster with adaptive power optimization Rev. 1 — 13 September 2024 Product data sheet 1. Ge.

NBM2317S60E1560T0R - Fixed Ratio DC-DC Converter (VICOR)
NBM™ Bus Converter NBM2317S60E1560T0R Non-Isolated, Fixed Ratio DC-DC Converter Features & Benefits • Maximum continuous output power: 800W „„Up to.

NBM7100A - Coin cell battery life booster (nexperia)
NBM7100A; NBM7100B Coin cell battery life booster with adaptive power optimization Rev. 3 — 10 April 2025 Product data sheet 1. General descripti.

NBM7100A-Q100 - Coin cell battery life booster (nexperia)
NBM7100A-Q100; NBM7100B-Q100 Coin cell battery life booster with adaptive power optimization Rev. 2 — 10 April 2025 Product data sheet 1. Genera.

NBM7100B - Coin cell battery life booster (nexperia)
NBM7100A; NBM7100B Coin cell battery life booster with adaptive power optimization Rev. 3 — 10 April 2025 Product data sheet 1. General descripti.

NBM7100B-Q100 - Coin cell battery life booster (nexperia)
NBM7100A-Q100; NBM7100B-Q100 Coin cell battery life booster with adaptive power optimization Rev. 2 — 10 April 2025 Product data sheet 1. Genera.

TAGS

NBM5100B Coin cell battery life booster nexperia

Image Gallery

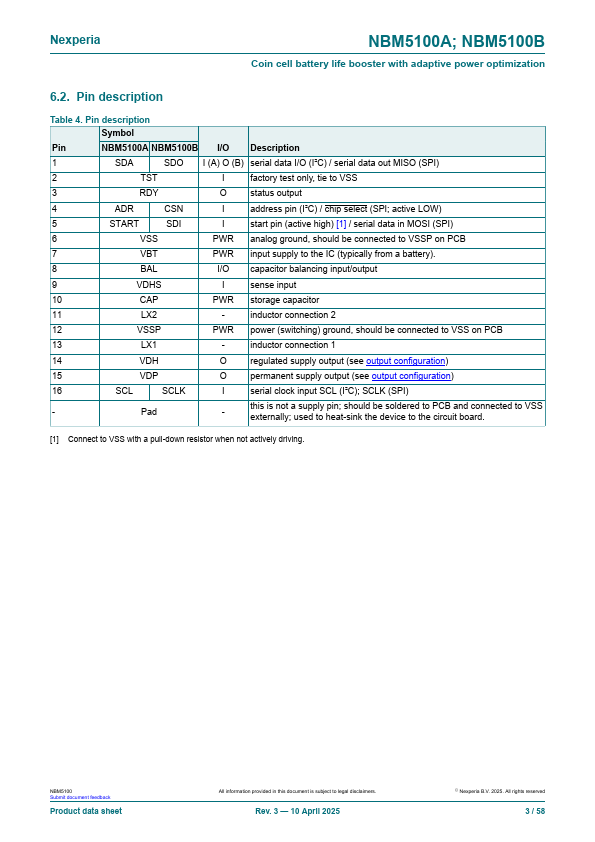

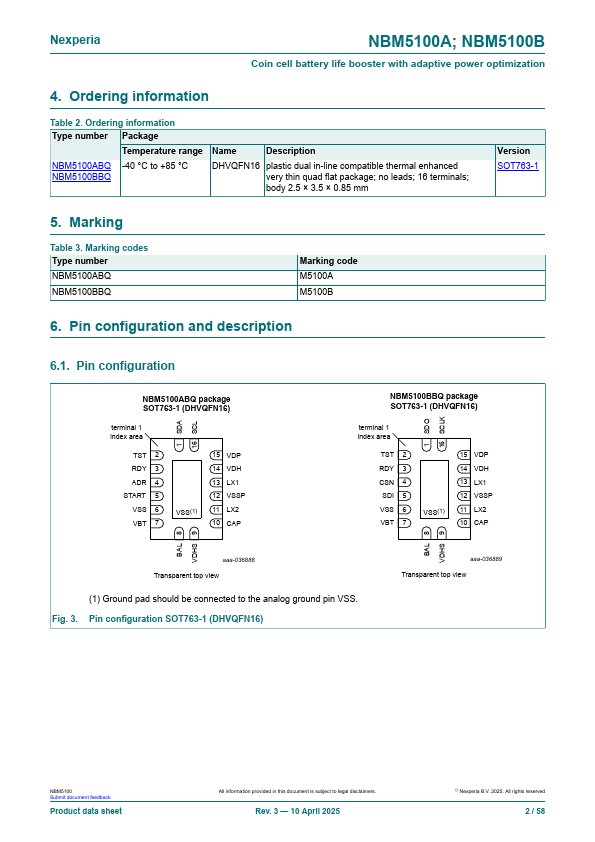

NBM5100B Datasheet Preview Page 2 NBM5100B Datasheet Preview Page 3
