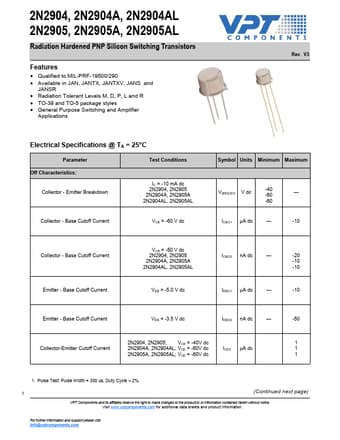

Part number: 2N2904A
Manufacturer: VPT
File Size: 442.72KB
Download: 📄 Datasheet
Description: Radiation Hardened PNP Transistors
* Qualified to MIL-PRF-19500/290
* Available in JAN, JANTX, JANTXV, JANS and
JANSR
* Radiation Tolerant Levels M, D, P, L and R
* TO-39 and TO-5 package s.
Rev. V3
Electrical Specifications @ TA = 25°C
Parameter Off Characteristics:
Collector - Emitter Breakdown
Test Cond.
