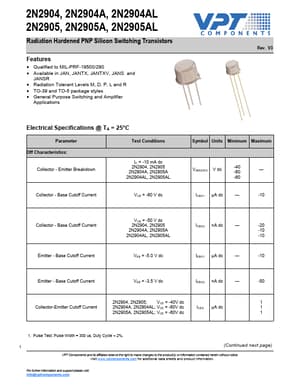

datasheet Preview Page 1 from Datasheet4u.com

2N2904AL, 2N2904 Radiation Hardened PNP Transistors

2N2904, 2N2904A, 2N2904AL 2N2905, 2N2905A, 2N2905AL Radiation Hardened PNP Silicon Switching Transistors .

2N2904-VPT.pdf

2N2904AL Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N2904AL, 2N2904. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N2904AL, 2N2904

Manufacturer:

VPT

File Size:

442.72 KB

Description:

Radiation Hardened PNP Transistors

Note:

This datasheet PDF includes multiple part numbers: 2N2904AL, 2N2904.
Please refer to the document for exact specifications by model.

Features

* Qualified to MIL-PRF-19500/290
* Available in JAN, JANTX, JANTXV, JANS and JANSR
* Radiation Tolerant Levels M, D, P, L and R
* TO-39 and TO-5 package styles

Applications

* Rev. V3 Electrical Specifications @ TA = 25°C Parameter Off Characteristics: Collector - Emitter Breakdown Test Conditions IC = -10 mA dc 2N2904, 2N2905 2N2904A, 2N2905A 2N2904AL, 2N2905AL Collector - Base Cutoff Current VCB = -60 V dc Symbol Units Minimum Maximum V(BR)CEO V dc -40 -60 -60
