VG26V18160CJ, VG2618160CJ - CMOS DRAM

Vanguard Microelectronics Limited

Datasheet Details

Part number	VG26V18160CJ, VG2618160CJ
Manufacturer	Vanguard Microelectronics Limited
File Size	485.78 KB
Description	CMOS DRAM
Datasheet	VG2618160CJ_VanguardMicroelectronicsLimited.pdf
Note	This datasheet PDF includes multiple part numbers: VG26V18160CJ, VG2618160CJ. Please refer to the document for exact specifications by model.

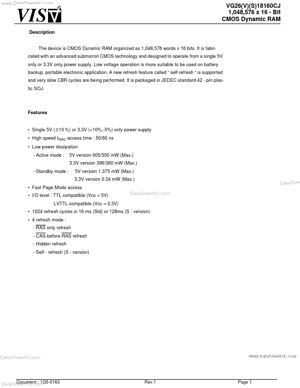

The device is CMOS Dynamic RAM organized as 1,048,576 words x 16 bits.

Single 5V ( ± 10 %) or 3.3V (+10%,-5%) only power supply.
High speed tRAC access time : 50/60 ns.
Low power dissipation - Active mode : 5V version 605/550 mW (Max. ) 3.3V version 396/360 mW (Max. ) - Standby mode : 5V version 1.375 mW (Max. ) 3.3V version 0.54 mW (Max. ).
Fast Page Mode access.
I/O level : TTL compatible (Vcc = 5V) LVTTL compatible (Vcc = 3.3V).
1024 refresh cycles in 16 ms (Std) or 128ms (S - version).
4 refresh mode :.
