VG26V17405F, VG2617405F - CMOS DRAM

Vanguard Microelectronics Limited

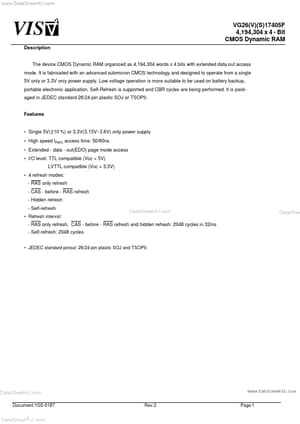

VG26V17405F Datasheet Preview — This datasheet PDF includes multiple part numbers: VG26V17405F, VG2617405F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VG26V17405F, VG2617405F
Manufacturer	Vanguard Microelectronics Limited
File Size	630.49 KB
Description	CMOS DRAM
Datasheet	VG2617405F_VanguardMicroelectronicsLimited.pdf
Note	This datasheet PDF includes multiple part numbers: VG26V17405F, VG2617405F. Please refer to the document for exact specifications by model.

VG26V17405F Product details

Description

VG26(V)(S)17405F 4,194,304 x 4 - Bit CMOS Dynamic RAM The device CMOS Dynamic RAM organized as 4,194,304 words x 4 bits with extended data out access mode.It is fabricated with an advanced submicron CMOS technology and designed to operate from a single 5V only or 3.3V oniy power supply.Low voltage operation is more suitable to be used on battery backup, portable electronic application.Self-Refresh is supported and CBR cycles are being performed.lt is packaged in JEDEC standard 26/24-pin pl

Features

Single 5V( ± 10 %) or 3.3V(3.15V~3.6V) only power supply.
High speed tRAC access time: 50/60ns.
Extended - data - out(EDO) page mode access.
I/O level: TTL compatible (Vcc = 5V) LVTTL compatible (Vcc = 3.3V).
4 refresh modes: - RAS only refresh - CAS - before - RAS refresh - Hidden refresh - Self-refresh.
Refresh interval: - Self-refresh: 2048 cycles.
JEDEC standard pinout: 26/24-pin plastic SOJ and TSOPII. DataSheet4U. com DataShe.
