VG26V17400D, VG2617400D - CMOS DRAM

Vanguard International Semiconductor

VG26V17400D Datasheet Preview — This datasheet PDF includes multiple part numbers: VG26V17400D, VG2617400D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VG26V17400D, VG2617400D
Manufacturer	Vanguard InterNational Semiconductor ↗
File Size	496.98 KB
Description	CMOS DRAM
Datasheet	VG2617400D_VanguardInternationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: VG26V17400D, VG2617400D. Please refer to the document for exact specifications by model.

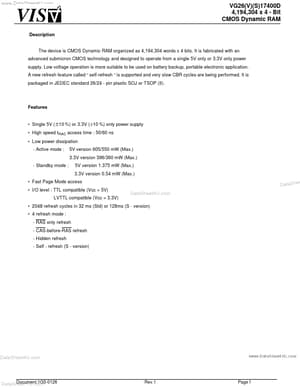

VG26V17400D Product details

Description

VG26(V)(S)17400D 4,194,304 x 4 - Bit CMOS Dynamic RAM The device is CMOS Dynamic RAM organized as 4,194,304 words x 4 bits.It is fabricated with an advanced submicron CMOS technology and designed to operate from a single 5V only or 3.3V only power supply.Low voltage operation is more suitable to be used on battery backup, portable electronic application.A new refresh feature called “ self-refresh “ is supported and very slow CBR cycles are being performed.It is packaged in JEDEC standard 2

Features

Single 5V ( ± 10 %) or 3.3V ( ± 10 %) only power supply.
High speed tRAC access time : 50/60 ns.
Low power dissipation - Active mode : 5V version 605/550 mW (Max. ) 3.3V version 396/360 mW (Max. ) - Standby mode : 5V version 1.375 mW (Max. ) 3.3V version 0.54 mW (Max. ).
Fast Page Mode access.
I/O level : TTL compatible (Vcc = 5V) LVTTL compatible (Vcc = 3.3V).
2048 refresh cycles in 32 ms (Std) or 128ms (S - version).
4 refresh mode :.
