VG26V17400FJ, VG2617400FJ - CMOS DRAM

Vanguard International Semiconductor

📥 Download Datasheet

VG26V17400FJ Datasheet Preview — This datasheet PDF includes multiple part numbers: VG26V17400FJ, VG2617400FJ. Please refer to the document for exact specifications by model.

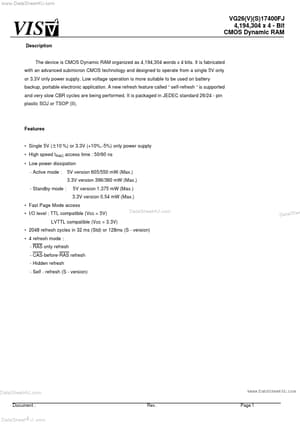

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VG26V17400FJ, VG2617400FJ
Manufacturer	Vanguard InterNational Semiconductor ↗
File Size	514.57 KB
Description	CMOS DRAM
Datasheet	VG2617400FJ_VanguardInternationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: VG26V17400FJ, VG2617400FJ. Please refer to the document for exact specifications by model.

VG26V17400FJ Product details

Description

or 3.3V only power supply.

Features

Single 5V ( ± 10 %) or 3.3V (+10%,-5%) only power supply.
High speed tRAC access time : 50/60 ns.
Low power dissipation - Active mode : 5V version 605/550 mW (Max. ) 3.3V version 396/360 mW (Max. ) - Standby mode : 5V version 1.375 mW (Max. ) 3.3V version 0.54 mW (Max. ).
Fast Page Mode access.
I/O level : TTL compatible (Vcc = 5V) LVTTL compatible (Vcc = 3.3V).
2048 refresh cycles in 32 ms (Std) or 128ms (S - version).
4 refresh mode :.
