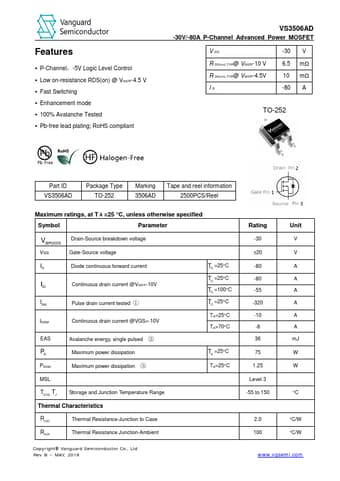

VS3506AD - P-Channel Advanced Power MOSFET

Features

P-Channel，-5V Logic Level Control.
Low on-resistance RDS(on) @ VGS=-4.5 V.
Fast Switching.
Enhancement mode.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant VS3506AD -30V/-80A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5V ID -30 V 6.5 mΩ 10 mΩ -80 A TO-252 Part ID VS3506AD Package Type TO-252 Marking 3506AD Tape and reel information 2500PCS/Reel Maximum ratings, at T A =25 °C, unless otherwise specified S.

Vanguard Semiconductor

Datasheet Details

Part number	VS3506AD
Manufacturer	Vanguard Semiconductor
File Size	334.37 KB
Description	P-Channel Advanced Power MOSFET
Datasheet	VS3506AD Datasheet
