VS3510AS

P-Channel Advanced Power MOSFET

VS3510AS Features

* P-Channel,-5V Logic Level Control

* Enhancement mode

* Low on-resistance RDS(on) @ VGS=-4.5 V

* Pb-free lead plating; RoHS compliant VS3510AS -30V/-14A P-Channel Advanced Power MOSFET V DS -30 V R @DS(on),TYP VGS=-10 V 11 mΩ R @DS(on),TYP VGS=-4.5 V 18 mΩ I D -14 A SOP8 Pa

VS3510AS Datasheet (464.95 KB)

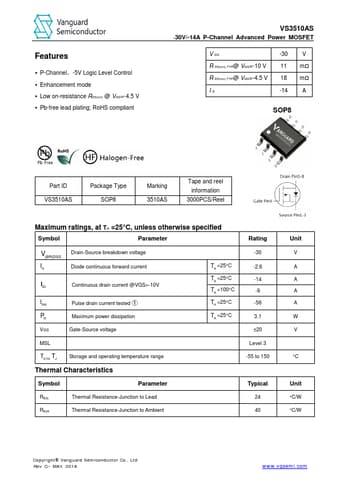

Preview of VS3510AS PDF

Datasheet Details

Part number:

VS3510AS

Manufacturer:

Vanguard Semiconductor

File Size:

464.95 KB

Description:

P-channel advanced power mosfet.
